Metaflow - Web Automation

Web Automation

Metaflow referentie: Web Automation

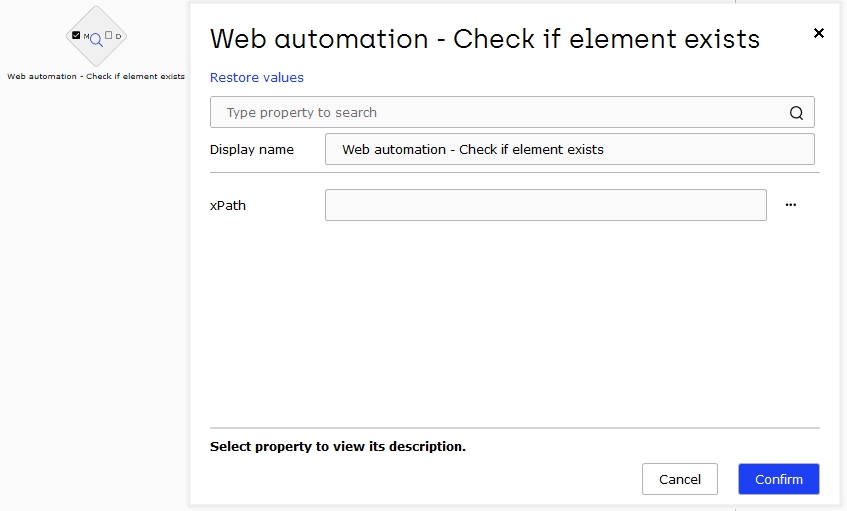

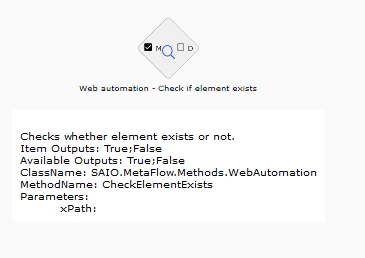

Check if element exists

Optie	Waarde	Type veld
xPath	Path to the element. Click on the more options icon to open the object cloning window	xPath selector

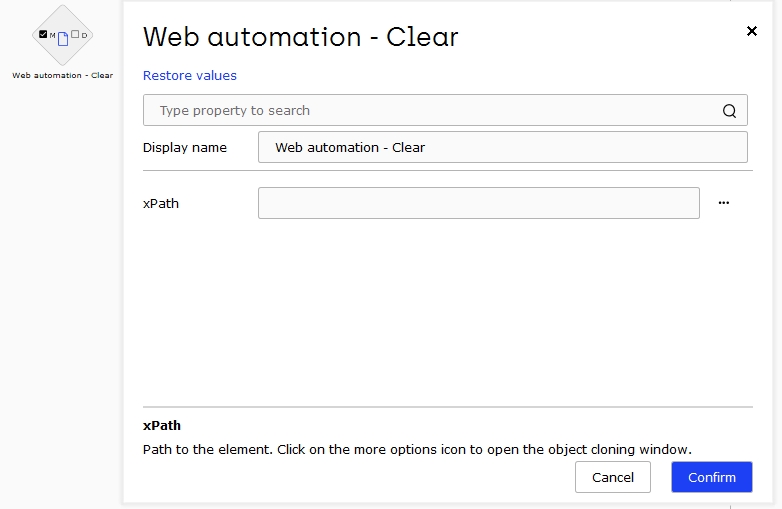

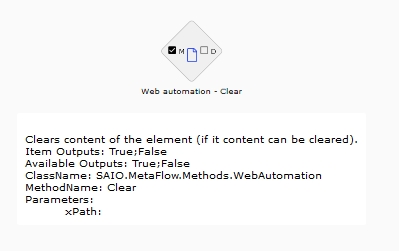

Clear

Optie	Waarde	Type veld
xPath	Path to the element. Click on the more options icon to open the object cloning window	xPath selector

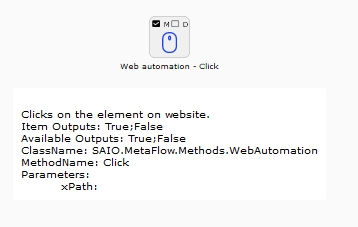

Click

Optie	Waarde	Type veld
xPath	Path to the element. Click on the more options icon to open the object cloning window	xPath selector

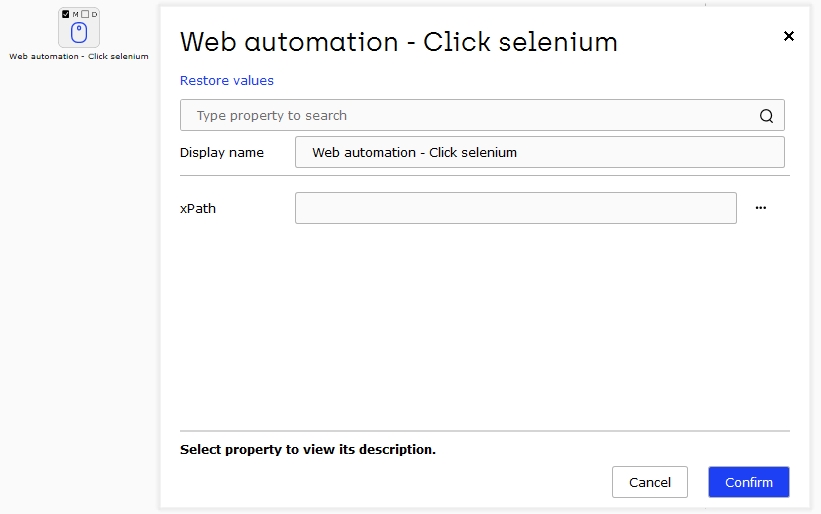

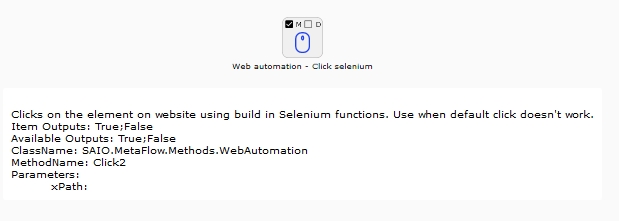

Click Selenium

Optie	Waarde	Type veld
xPath	Path to the element. Click on the more options icon to open the object cloning window	xPath selector

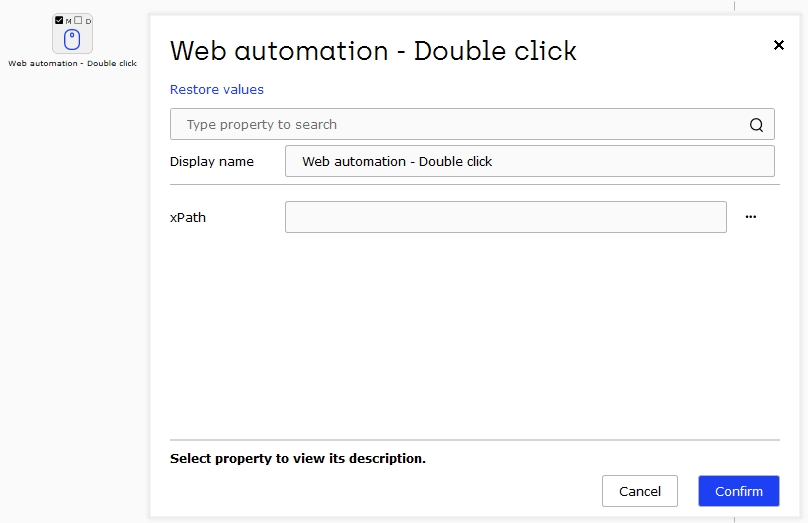

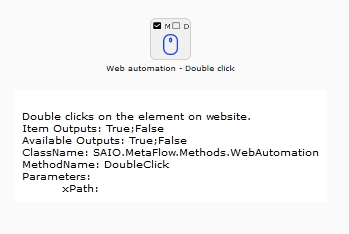

Double click

Optie	Waarde	Type veld
xPath	Path to the element. Click on the more options icon to open the object cloning window	xPath selector

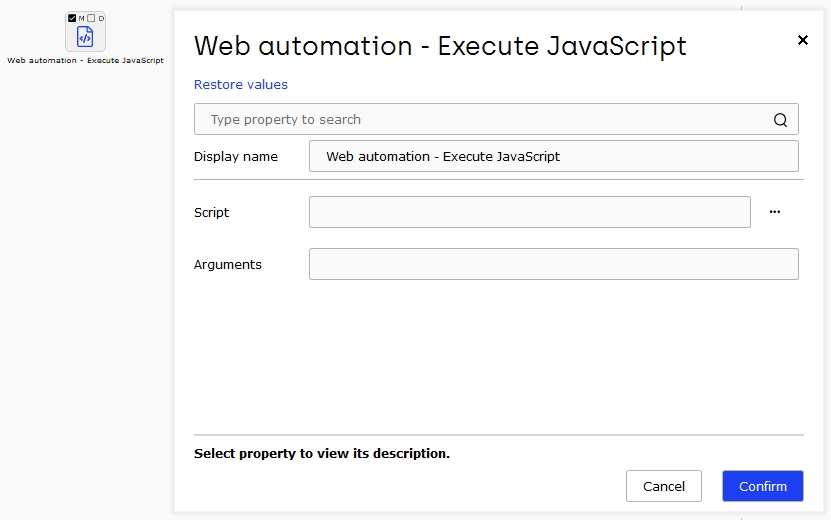

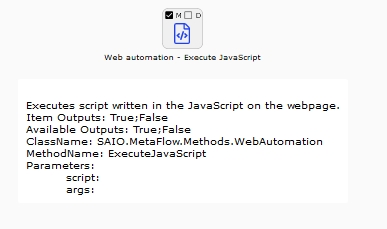

Execute JavaScript

Optie	Waarde	Type veld
Script	Script to be executed	string
Arguments	Script arguments. Use ',' to introduce multiple arguments	string

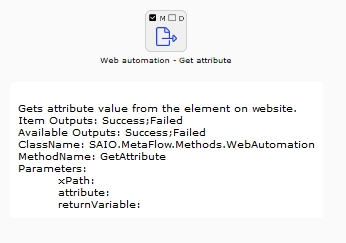

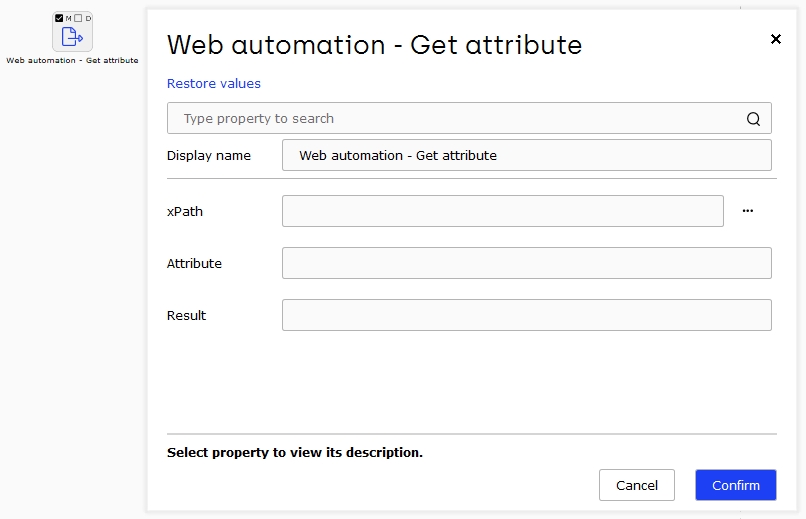

Get Attribute

Optie	Waarde	Type veld
xPath	Path to the element. Click on the more options icon to open the object cloning window	xPath selector
Attribute	Attribute whose value is to be retrieved	string
Result	Attribute value of the element	string

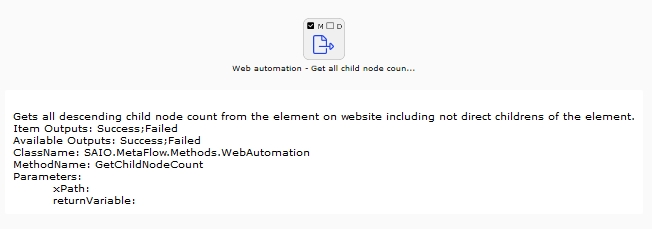

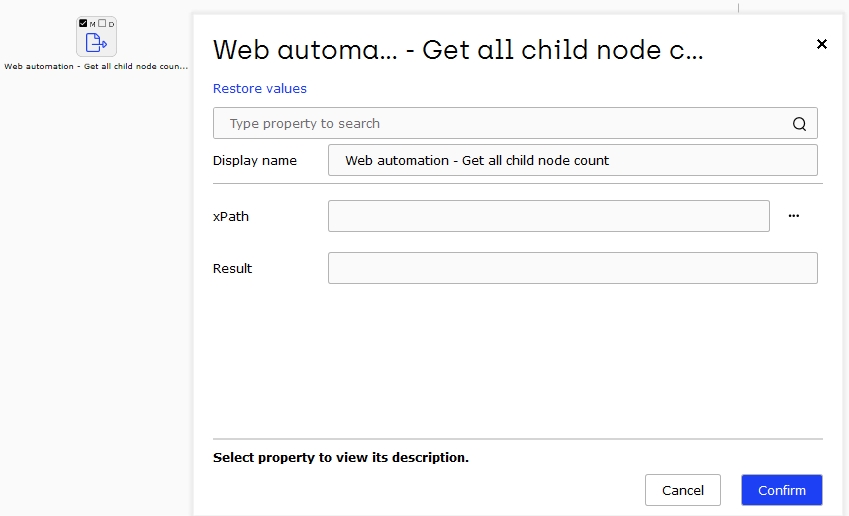

Get all child node count

Optie	Waarde	Type veld
xPath	Path to the element. Click on the more options icon to open the object cloning window	xPath selector
Result	Count of child nodes located within the searched element. If set to -1, the method has failed	string

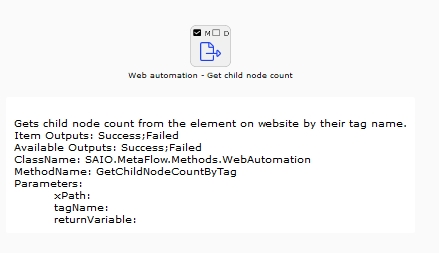

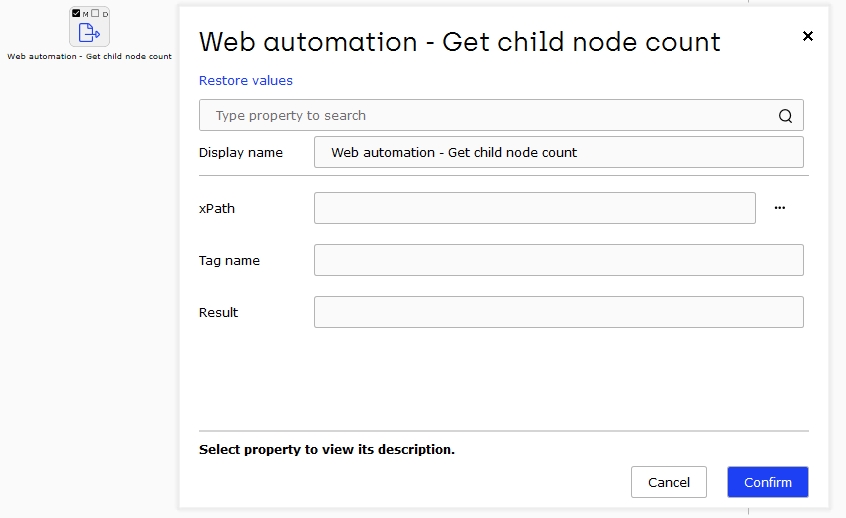

Get child node count

Optie	Waarde	Type veld
xPath	Path to the element. Click on the more options icon to open the object cloning window	xPath selector
Result	Count of child nodes located within the searched element. If set to -1, the method has failed	string

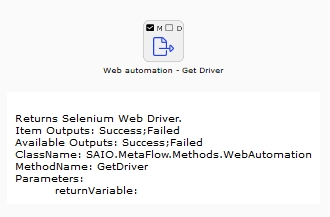

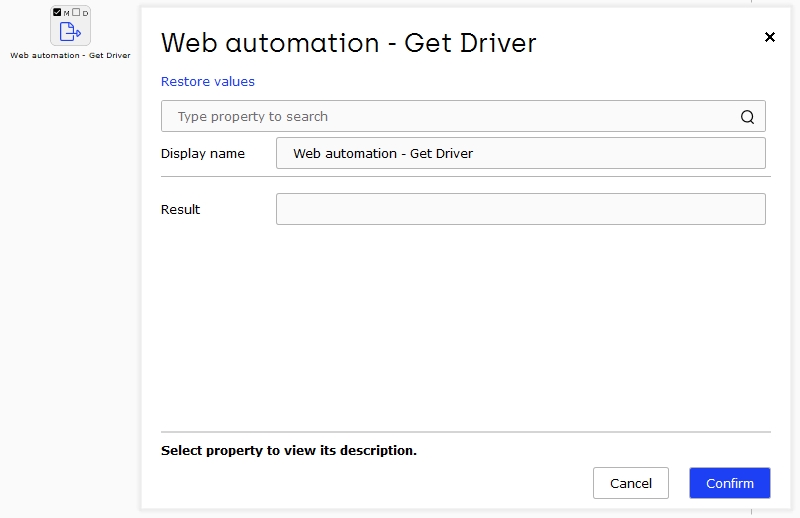

Get Driver

Optie	Waarde	Type veld
Result	Driver object	string

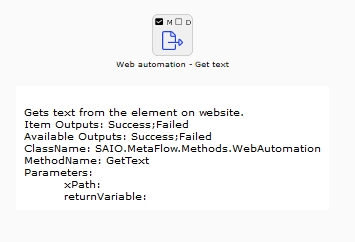

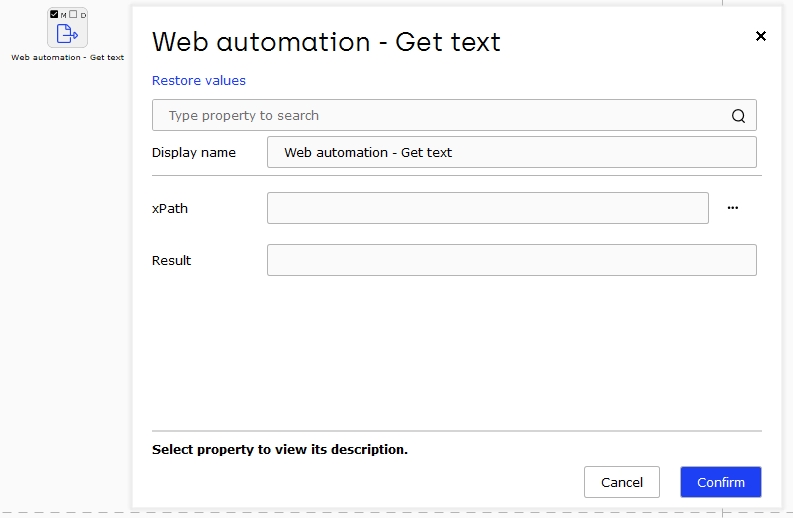

Get Text

Optie	Waarde	Type veld
xPath	Path to the element. Click on the more options icon to open the object cloning window	xPath selector
Result	Text from the element	string

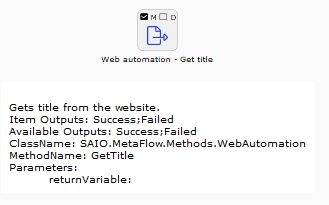

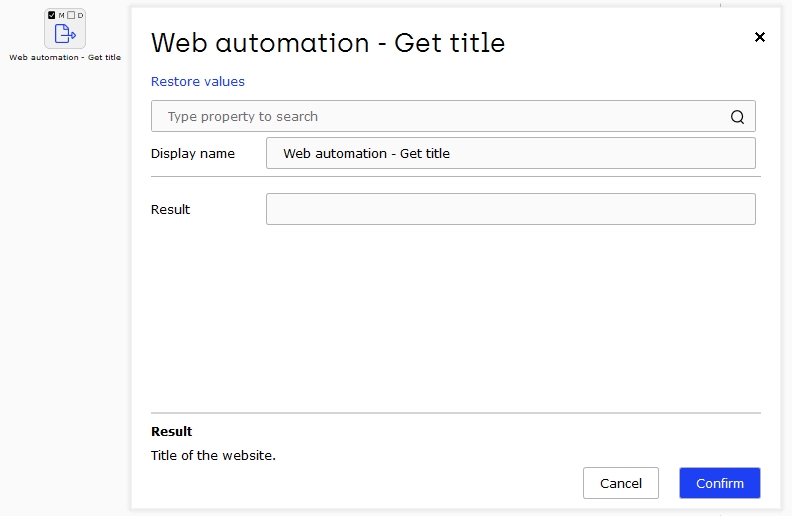

Get Title

Optie	Waarde	Type veld
Result	Title of the website	string

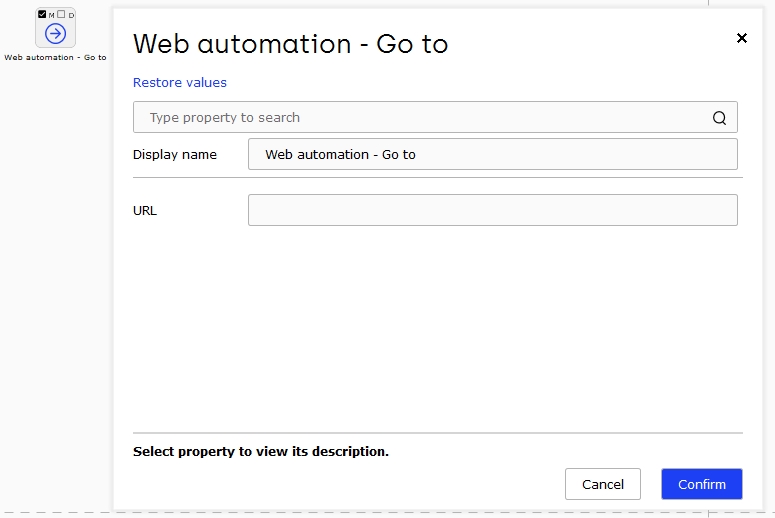

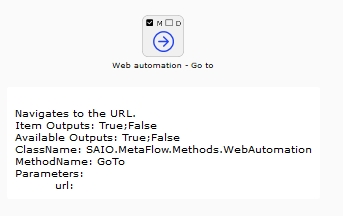

Go To

Optie	Waarde	Type veld
Url	Webpage to which you will be redirected	string

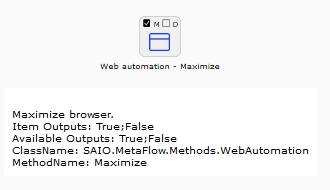

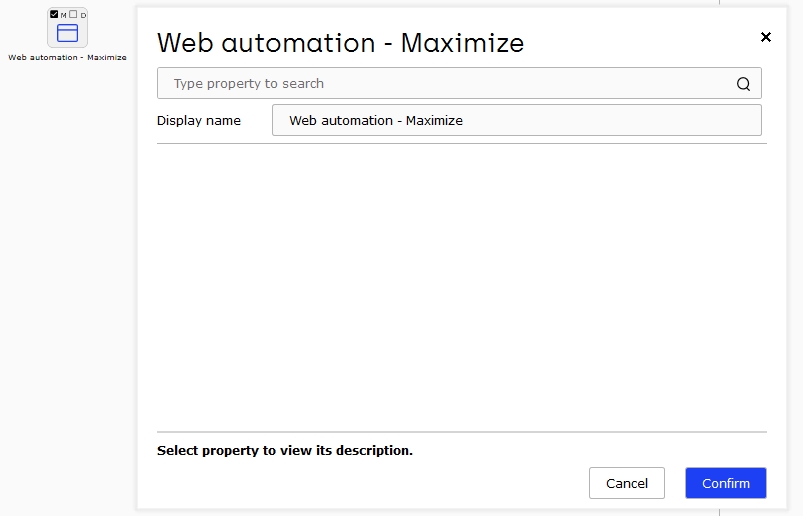

Maximize

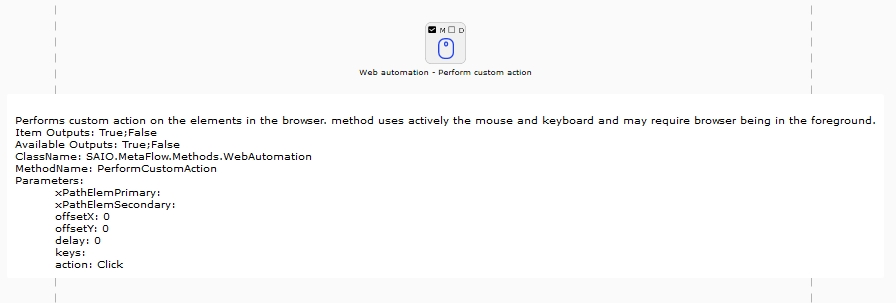

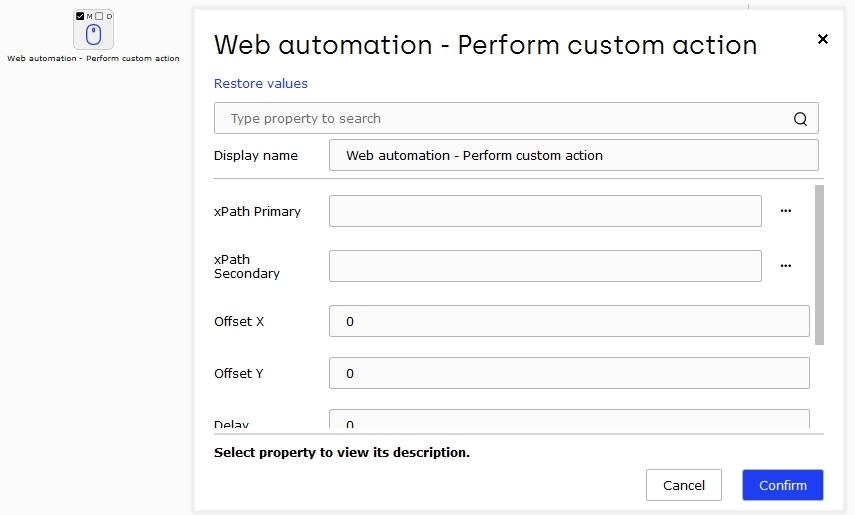

Perform custom action

Optie	Waarde	Type veld
xPath Primary	Optional path to the primary element (used as target for actions). Click on the more options icon to open the object cloning window	xPath selector
xPath Secondary	Optional path to the secondary element. Click on the more options icon to open the object cloning window	xPath selector
Offset X	Optional offset X for action	integer
Offset Y	Optional offset Y for action	integer
Delay	Optional time in milliseconds to hold the mouse click	integer
Keys	Optional keys to be sent to browser in action	tekst
Action	Action to perform on found element. Depending on the action type, some of the optional parameters will be used	dropdown

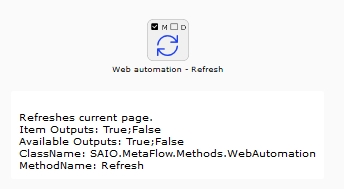

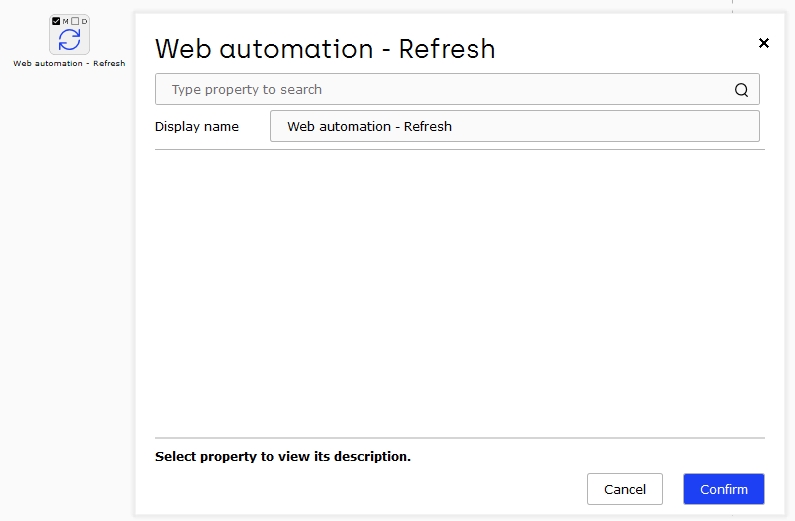

Refresh

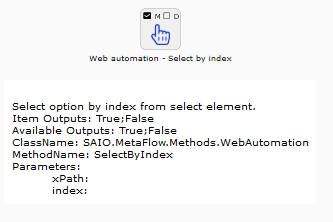

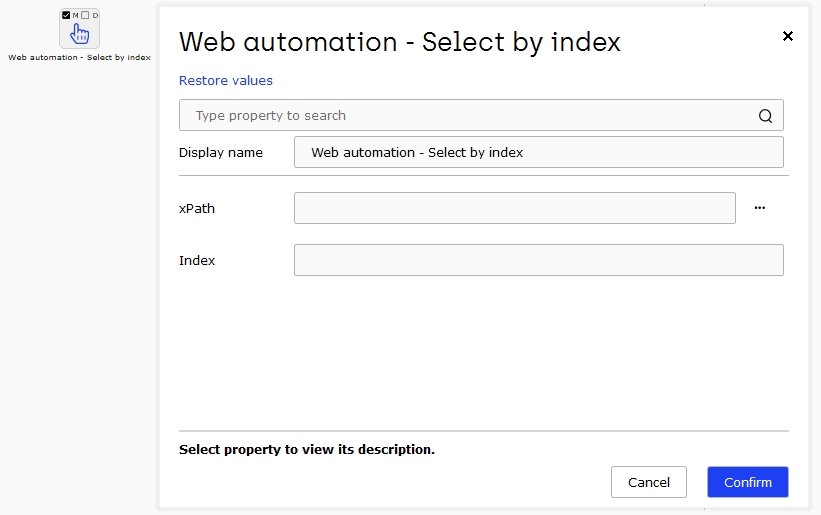

Select by Index

Optie	Waarde	Type veld
xPath	Path to the element. Click on the more options icon to open the object cloning window	xPath selector
Index	Index to be selected from the select element	tekst

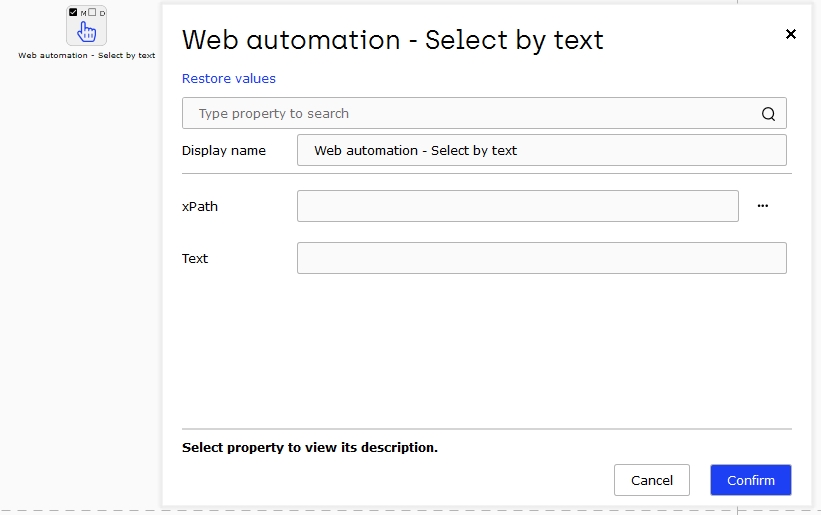

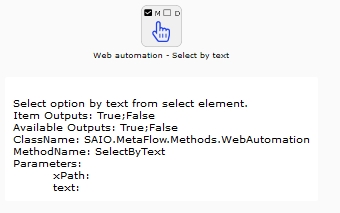

Select by Text

Optie	Waarde	Type veld
xPath	Path to the element. Click on the more options icon to open the object cloning window	xPath selector
Text	Text to be selected from the select element	tekst

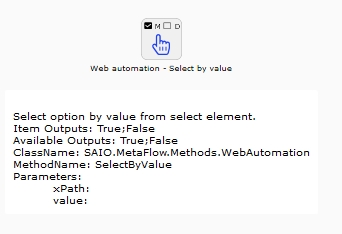

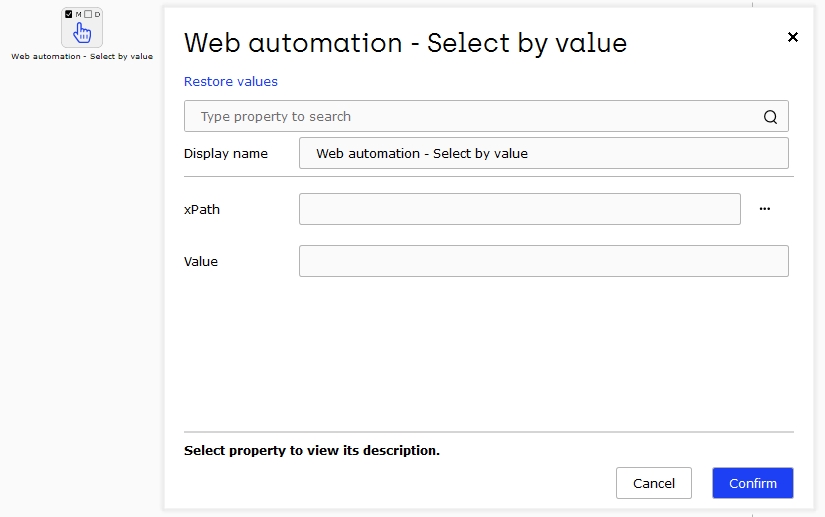

Select by Value

Optie	Waarde	Type veld
xPath	Path to the element. Click on the more options icon to open the object cloning window	xPath selector
Value	Value to be selected from the select element	tekst

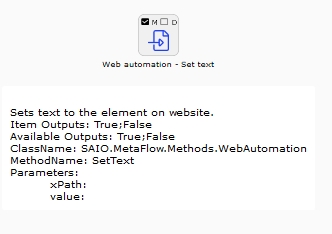

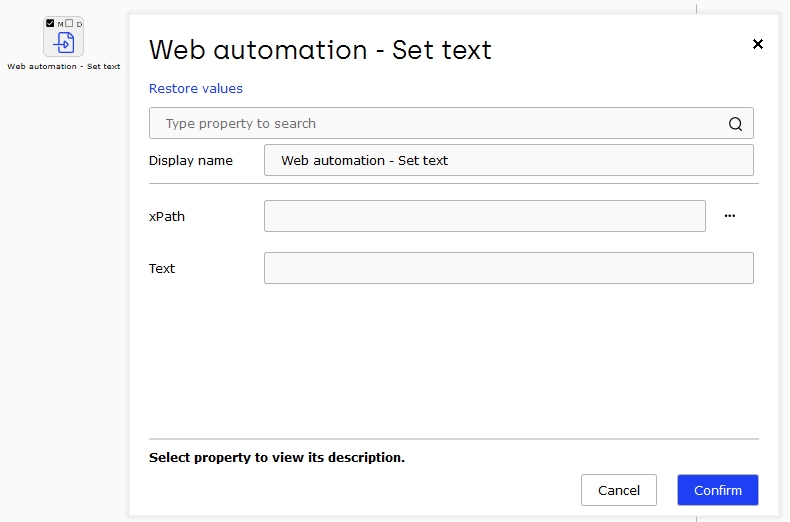

Set Text

Optie	Waarde	Type veld
xPath	Path to the element. Click on the more options icon to open the object cloning window	xPath selector
Text	Text to be inserted to the element	tekst

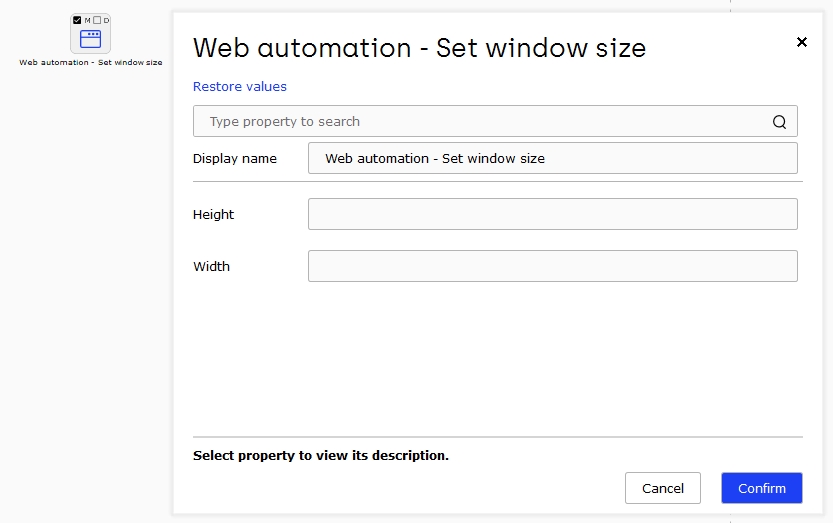

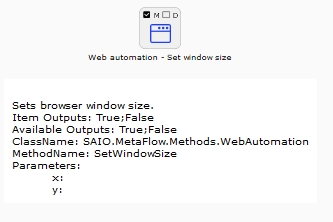

Set Window size

Optie	Waarde	Type veld
Height	Height of the browser window	tekst
Width	Width of the browser window	tekst

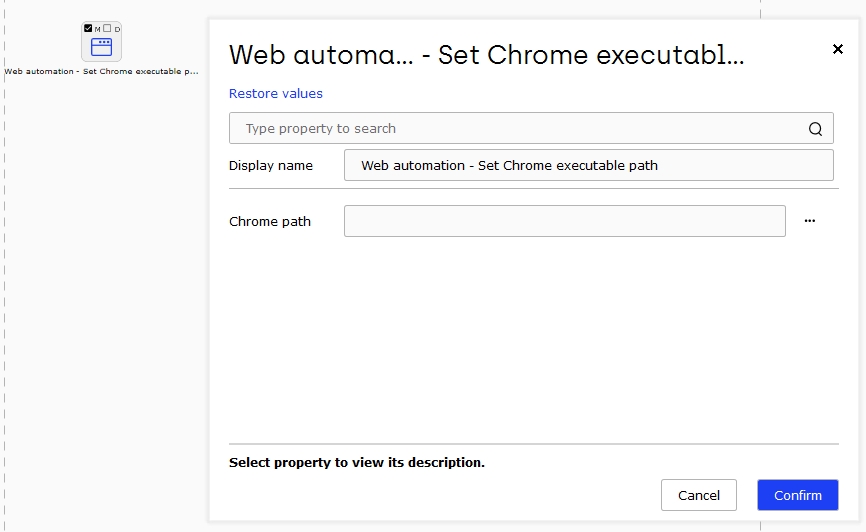

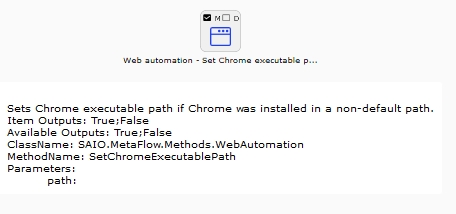

Set Chrome executalbe path

Optie	Waarde	Type veld
Chrome path	Path to the executable file of Google Chrome ('chrome.exe). Should be specified only if needed, due to custom installation	source

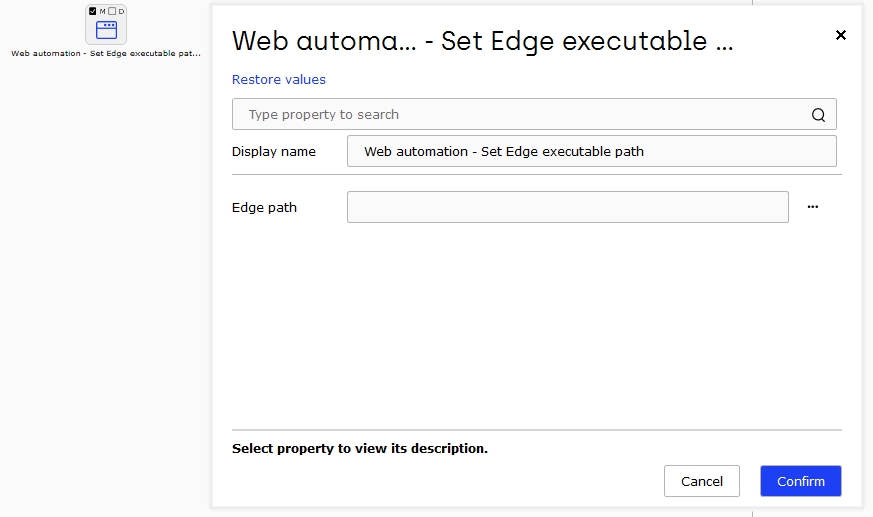

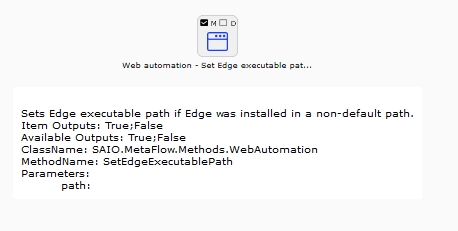

Set Edge executalbe path

Optie	Waarde	Type veld
Edge path	Path to the executable file of MS Edge ('msedge.exe). Should be specified only if needed, due to custom installation	source

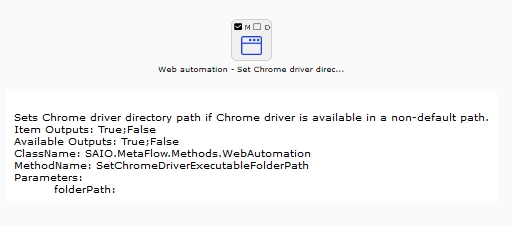

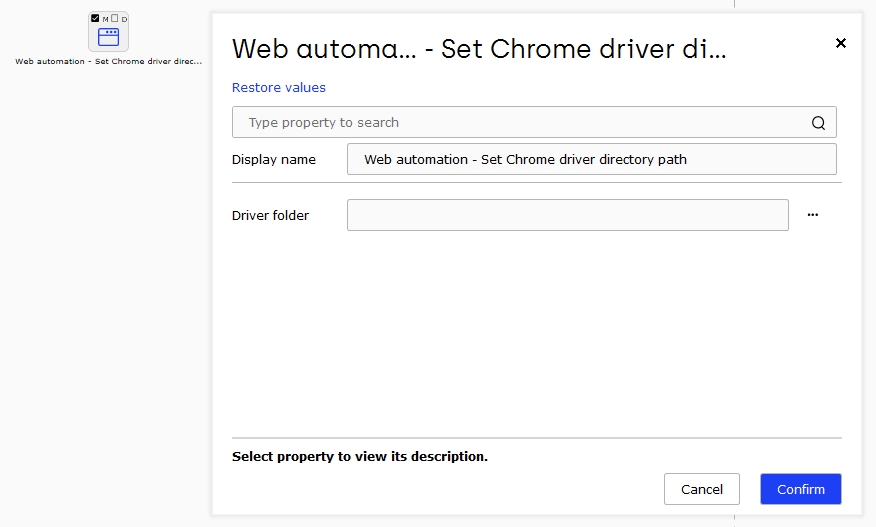

Set Chrome driver directory path

Optie	Waarde	Type veld
Driver folder	Path to the folder containing the driver file for Google Chrome Automation. Should be specified only if needed, due to custom installation	source

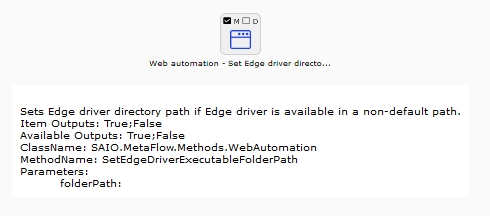

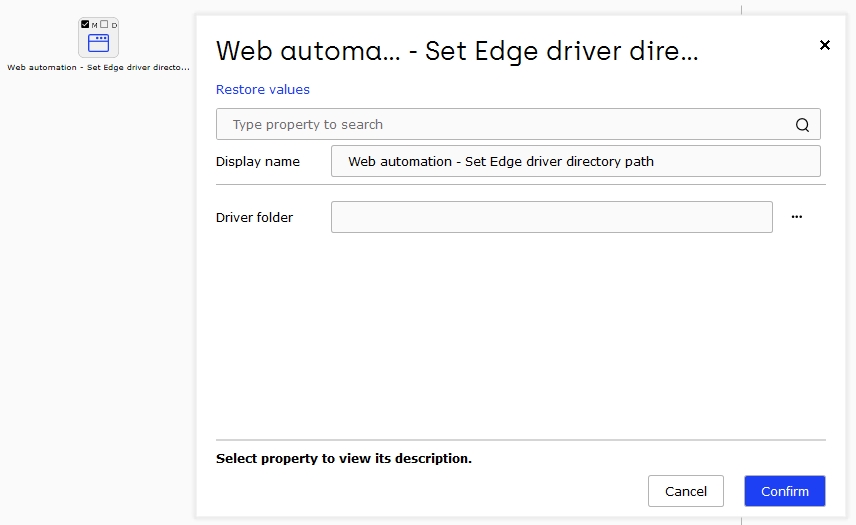

Set Edge driver directory path

Optie	Waarde	Type veld
Driver folder	Path to the folder containing the driver file for MS Edge Automation. Should be specified only if needed, due to custom installation	source

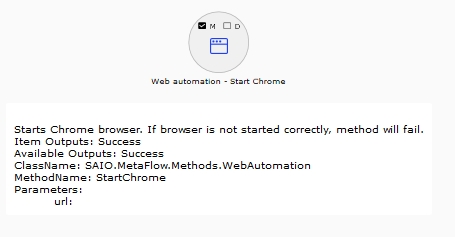

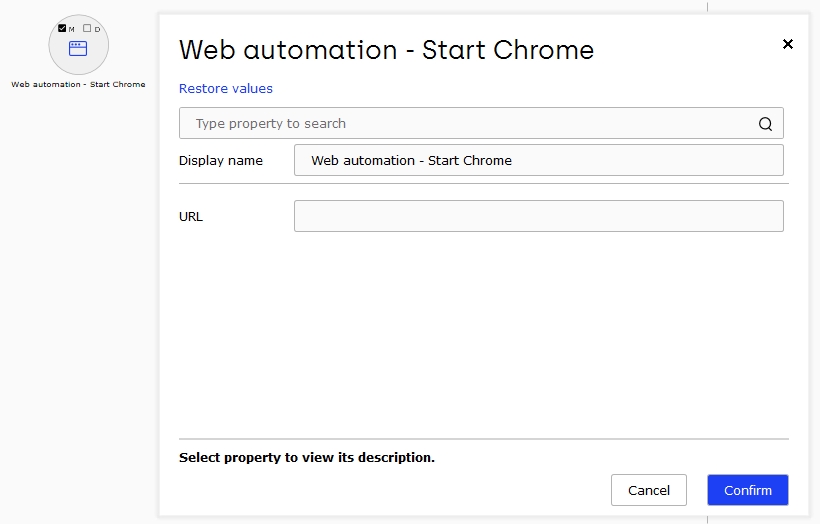

Start Chrome

Optie	Waarde	Type veld
URL	Starting webpage	tekst

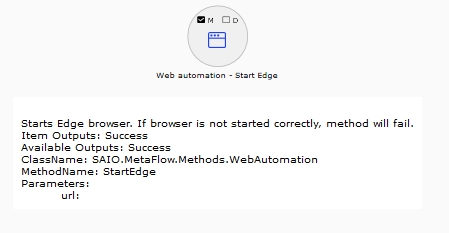

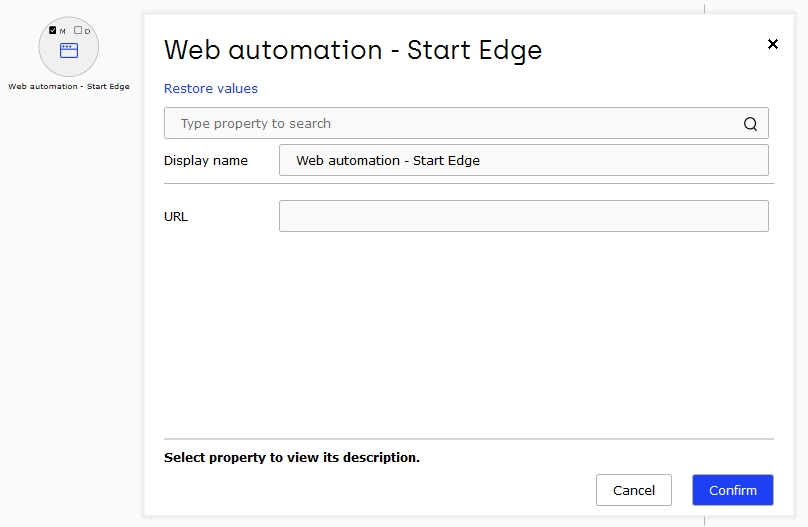

Start Edge

Optie	Waarde	Type veld
URL	Starting webpage	tekst

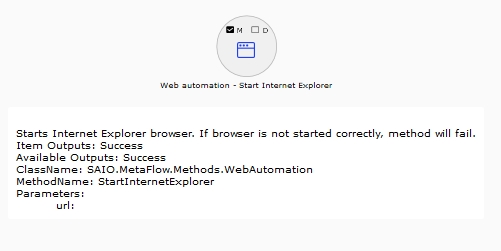

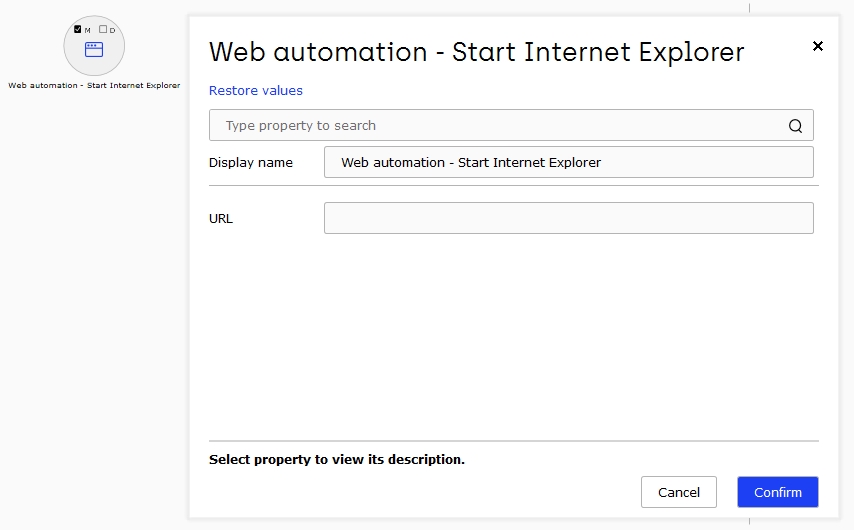

Start Internet Explorer

Optie	Waarde	Type veld
URL	Starting webpage	tekst

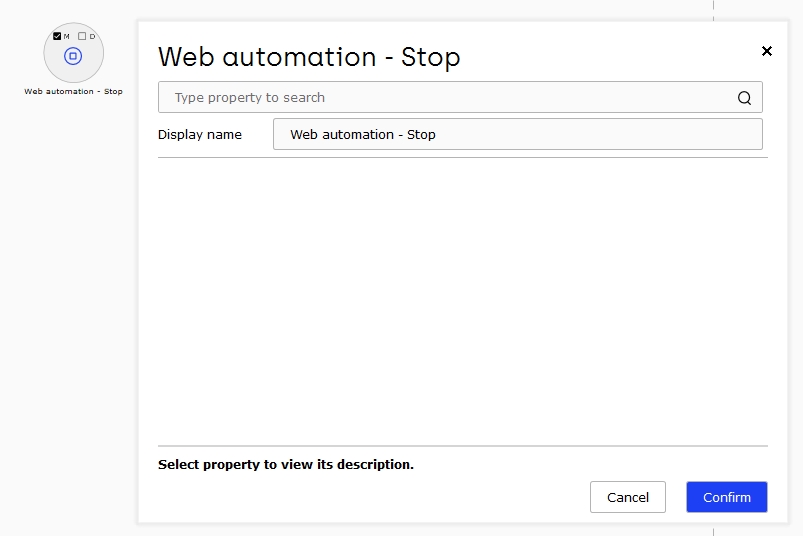

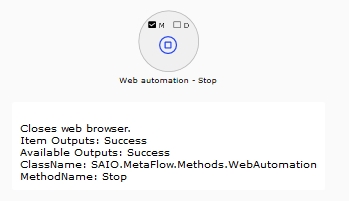

Stop

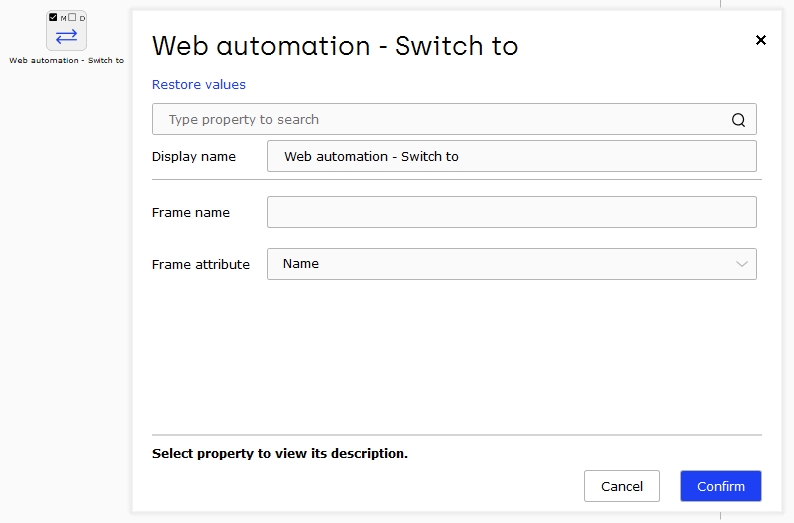

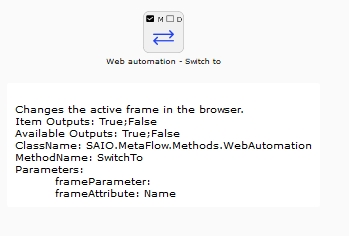

Switch to

Optie	Waarde	Type veld
Frame name	Name of the frame to be switched to	tekst
Frame attribute	Attribute which will be used to get frame	dropdown

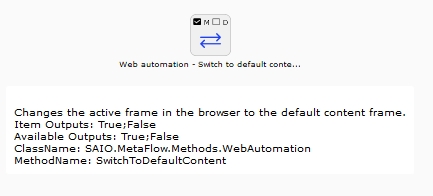

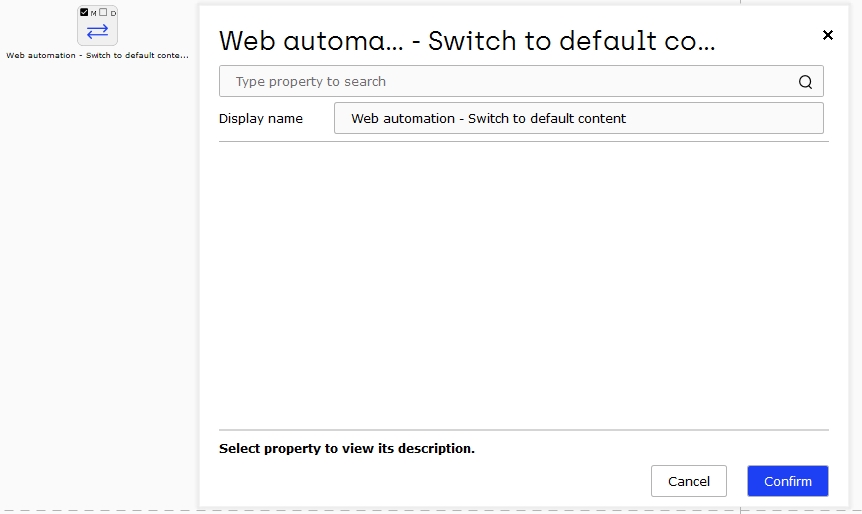

Switch to default content

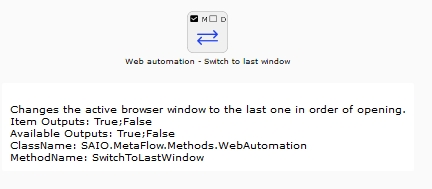

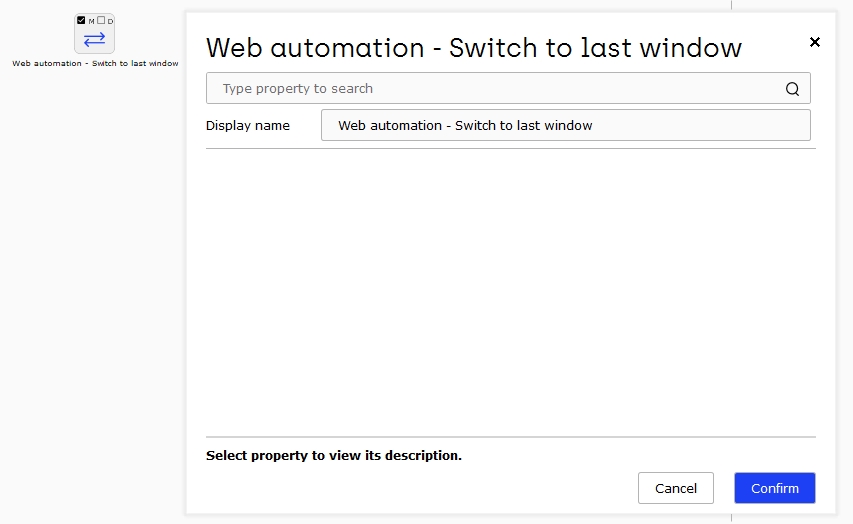

Switch to last window

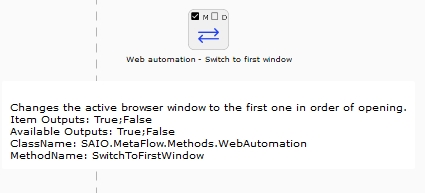

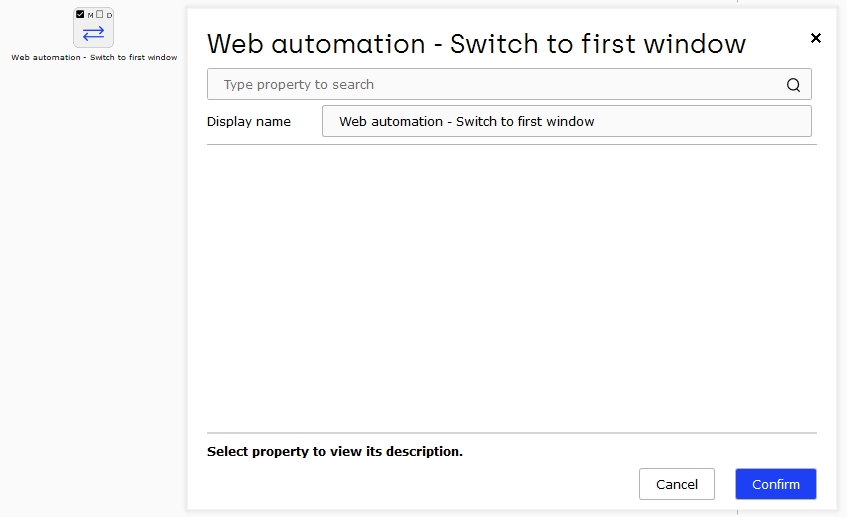

Switch to first window

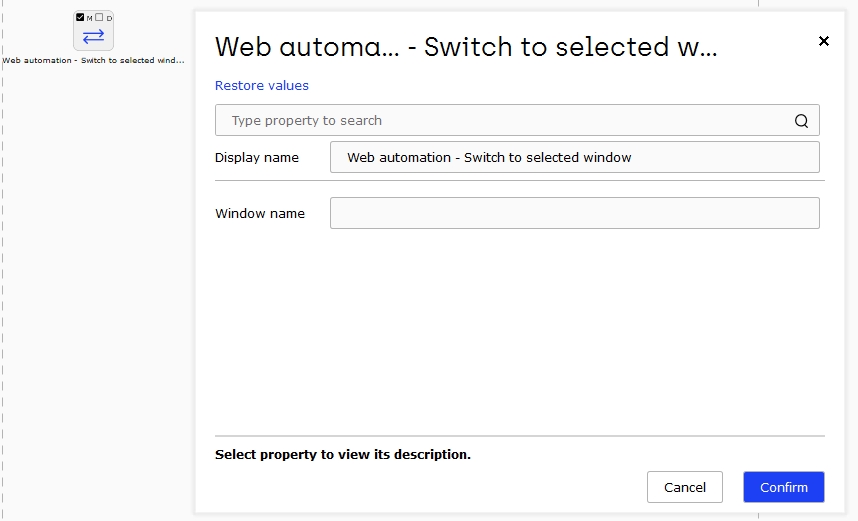

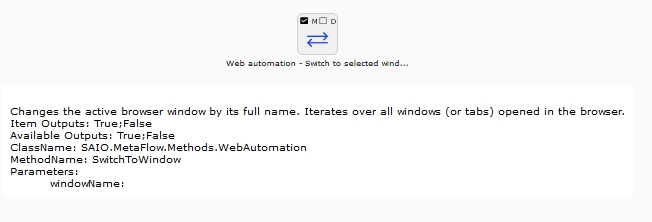

Switch to selected window

Optie	Waarde	Type veld
Window name	Title of the window which will be switched to	tekst

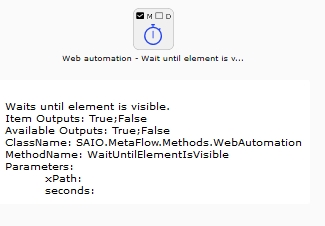

Wait until element is visible

Optie	Waarde	Type veld
xPath	Path to the element. Click on the more options icon to open the object cloning window	xPath selector
Seconds	How long in seconds to wait for element to become visible. If element become visible earlier, then wait time is shortened	integer

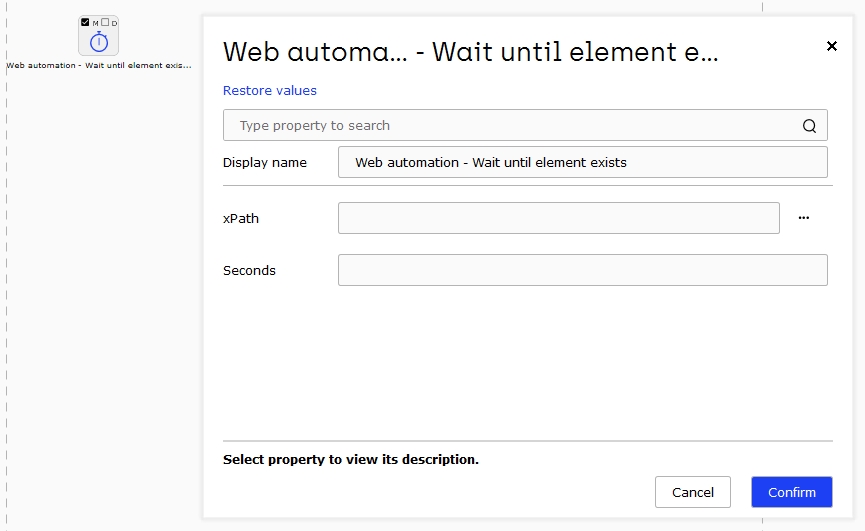

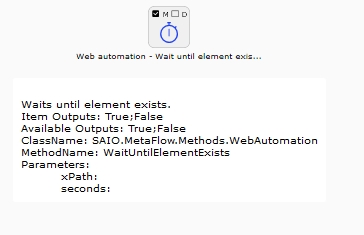

Wait until element exists

Optie	Waarde	Type veld
xPath	Path to the element. Click on the more options icon to open the object cloning window	xPath selector
Seconds	How long in seconds to wait for element on the website. If element will load earlier, then wait time is shortened	integer

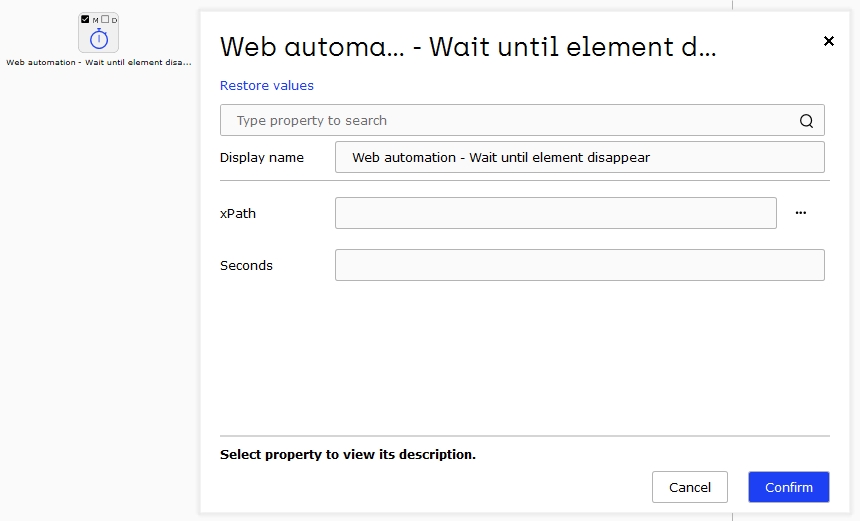

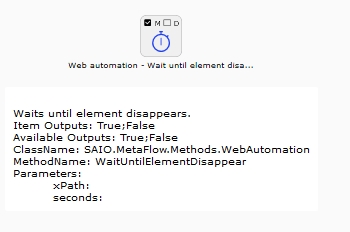

Wait until element disappear

Optie	Waarde	Type veld
xPath	Path to the element. Click on the more options icon to open the object cloning window	xPath selector
Seconds	How long in seconds to wait for element to disappear. If element will disappear earlier, then wait time is shortened	integer
