Metaflow - Image


Metaflow referentie: Image

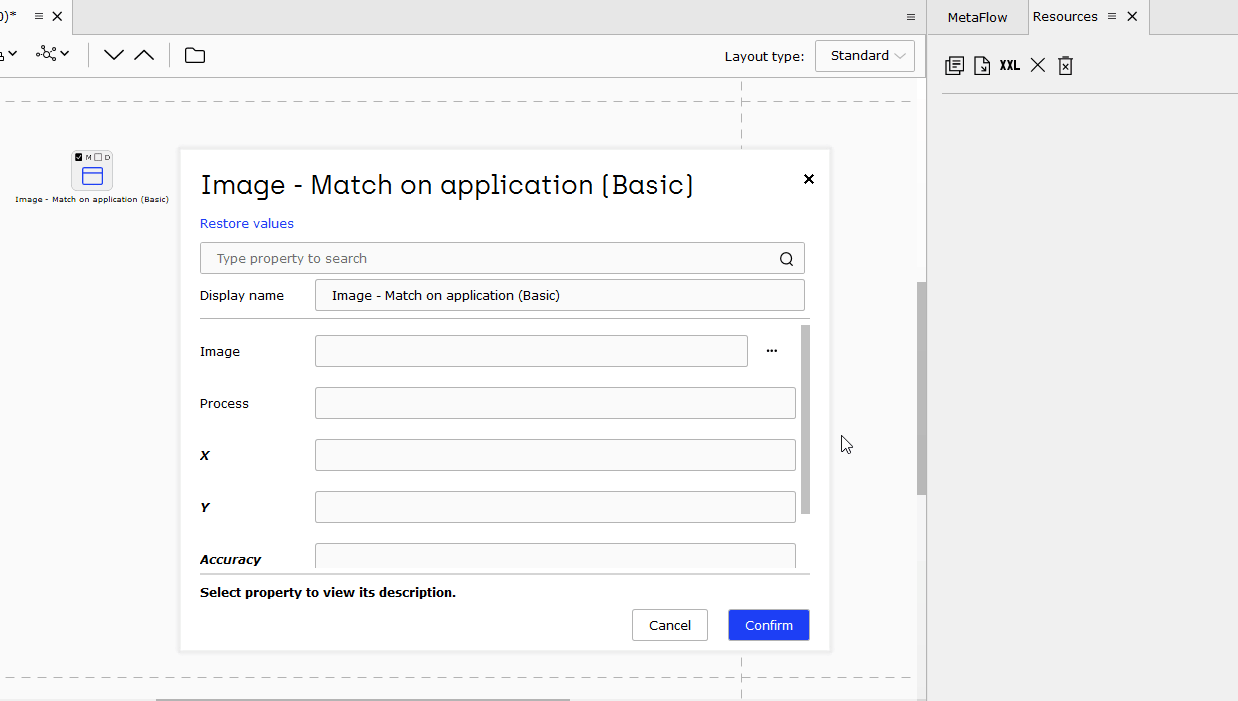

Add resource

Om deze metaflow te gebruiken dient er eerst een afbeelding in de resources gezet worden. Deze kan vervolgens in de metaflow objecten gebruikt worden. Ondersteunde formaten:

• PNG, JPG, BMP

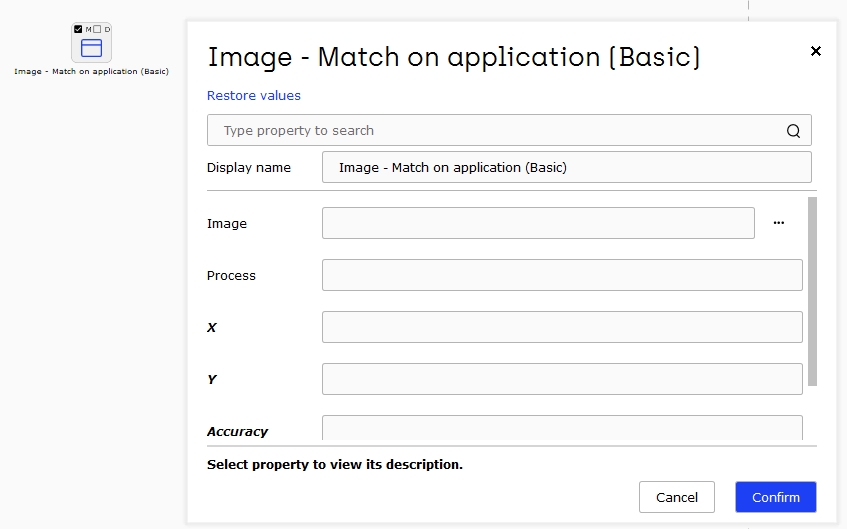

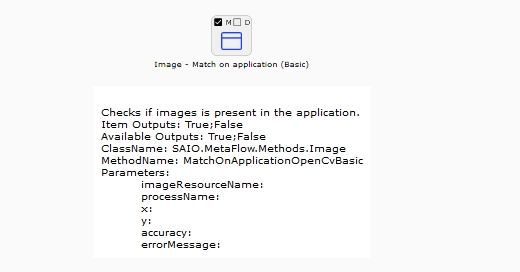

Match on application (Basic)

Optie	Waarde	Type veld
Image	Image from the resources. Click on the more options to open the resource selection window	jpg, png, bmp
Process	Name of processes in which window the image will be searched for	tekst
X	Coordinate on the X axis of the center of founded image. Coordinate is located in virtual desktop (all desktops in one)	tekst
Y	Coordinate on the Y axis of the center of founded image. Coordinate is located in virtual desktop (all desktops in one)	tekst
Accuracy	Accuracy of founded image. Accuracy will not be lower than minimum required accuracy	tekst
Error	Error message if matching will fail	tekst

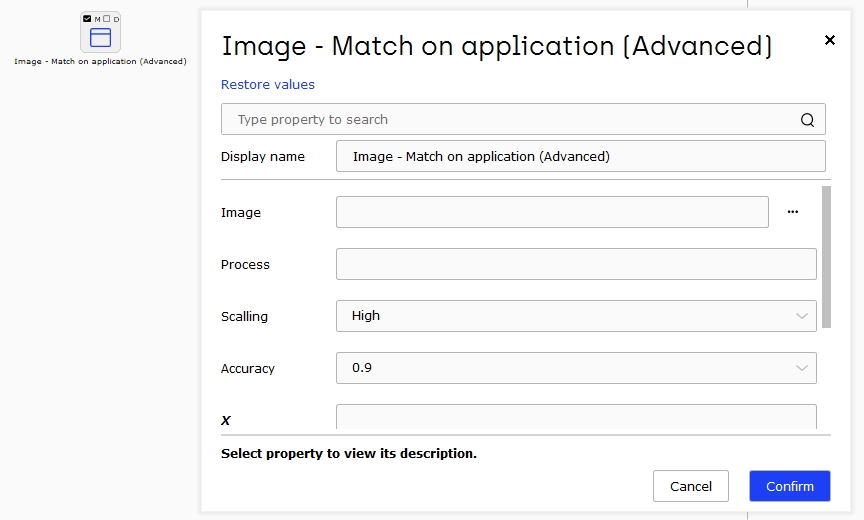

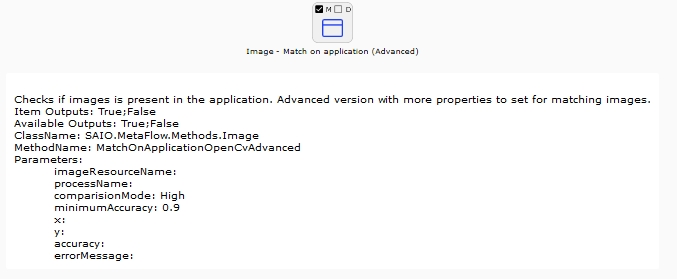

Match on application (Advanced)

Optie	Waarde	Type veld
Image	Image from the resources. Click on the more options to open the resource selection window	jpg, png, bmp
Process	Name of processes in which window the image will be searched for	tekst
Scaling	Comparison mode for scaling of the image to be found - lower accuracy is faster bu for smaller objects higher levels of accuracy should be used.	dropdown
X	Coordinate on the X axis of the center of founded image. Coordinate is located in virtual desktop (all desktops in one)	tekst
Y	Coordinate on the Y axis of the center of founded image. Coordinate is located in virtual desktop (all desktops in one)	tekst
Accuracy	Minimum required accuracy for all results of image recognition - best result is always selected, but its accuracy has to be at least of this value.	dropdown
Error	Error message if matching will fail	tekst

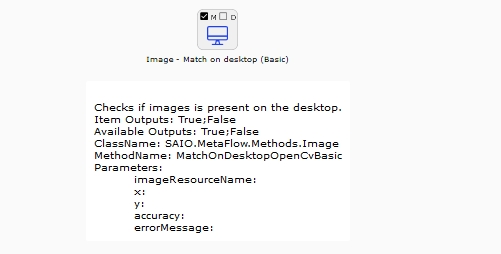

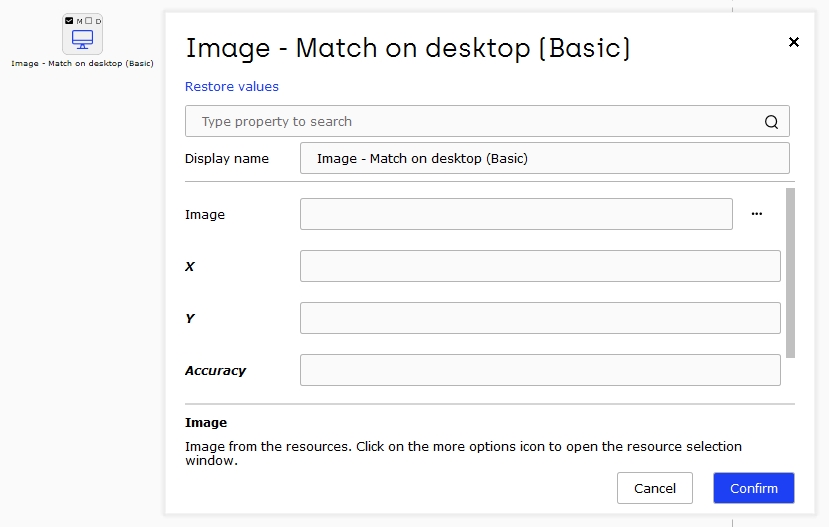

Match on desktop (Basic)

Optie	Waarde	Type veld
Image	Image from the resources. Click on the more options to open the resource selection window	jpg, png, bmp
X	Coordinate on the X axis of the center of founded image. Coordinate is located in virtual desktop (all desktops in one)	tekst
Y	Coordinate on the Y axis of the center of founded image. Coordinate is located in virtual desktop (all desktops in one)	tekst
Accuracy	Accuracy of founded image. Accuracy will not be lower than minimum required accuracy	tekst
Error	Error message if matching will fail	tekst

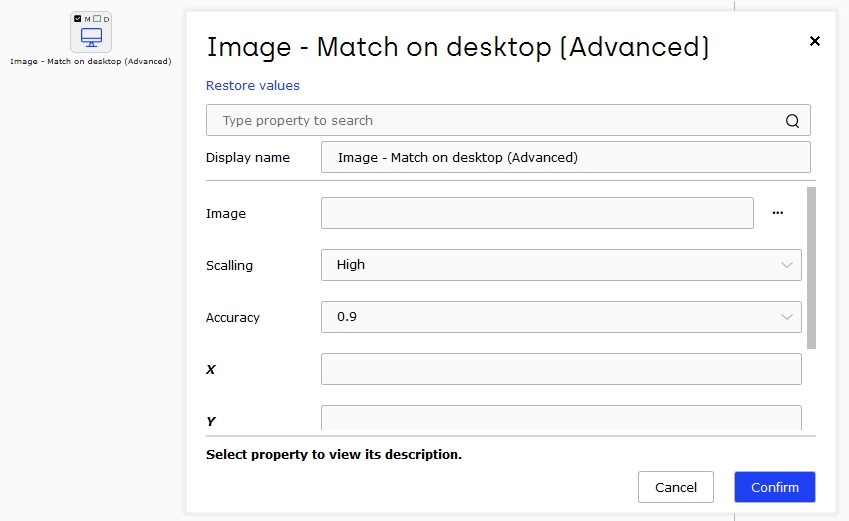

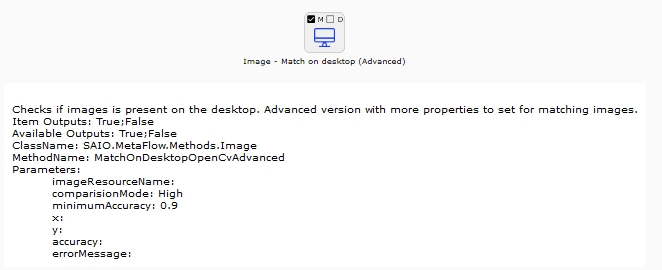

Match on desktop (Advanced)

Optie	Waarde	Type veld
Image	Image from the resources. Click on the more options to open the resource selection window	jpg, png, bmp
Scaling	Comparison mode for scaling of the image to be found - lower accuracy is faster bu for smaller objects higher levels of accuracy should be used.	dropdown
X	Coordinate on the X axis of the center of founded image. Coordinate is located in virtual desktop (all desktops in one)	tekst
Y	Coordinate on the Y axis of the center of founded image. Coordinate is located in virtual desktop (all desktops in one)	tekst
Accuracy	Minimum required accuracy for all results of image recognition - best result is always selected, but its accuracy has to be at least of this value.	dropdown
Error	Error message if matching will fail	tekst

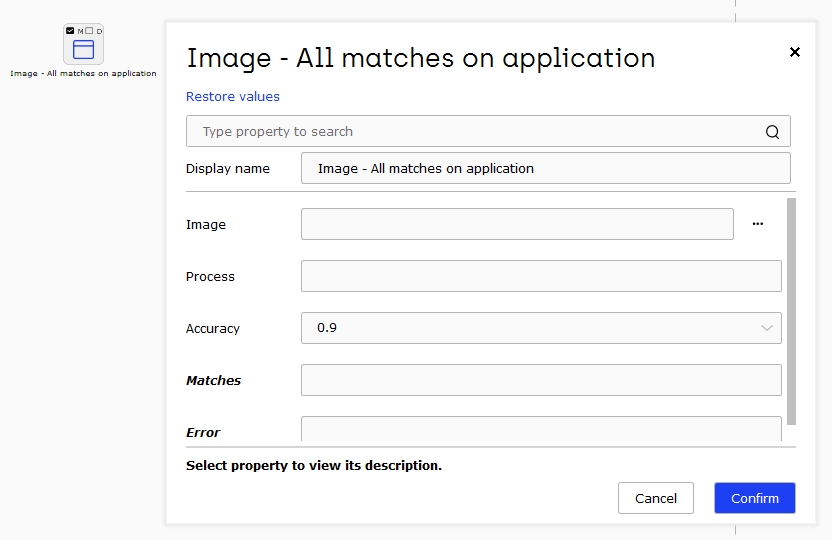

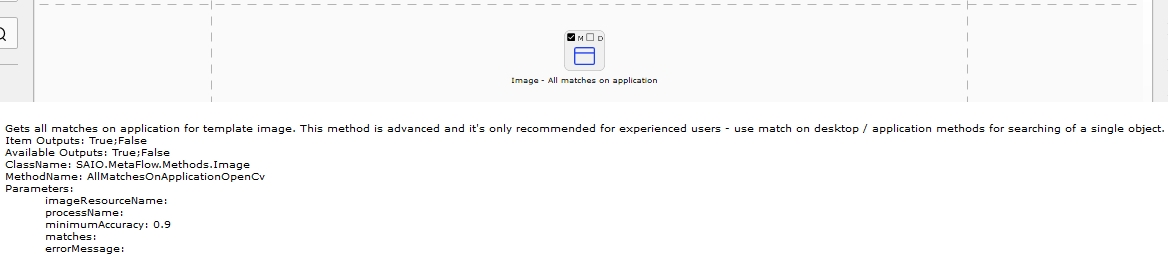

All matches on application

Optie	Waarde	Type veld
Image	Image from the resources. Click on the more options to open the resource selection window	jpg, png, bmp
Process	Name of processes in which window the image will be searched for	tekst
Accuracy	Minimum required accuracy for all results of image recognition - best result is always selected, but its accuracy has to be at least of this value.	dropdown
Matches	All matches of the template on desktop in JSON format	tekst
Error	Error message if matching will fail	tekst

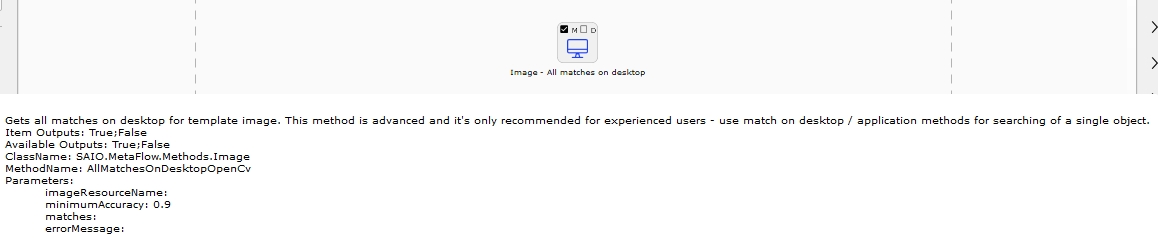

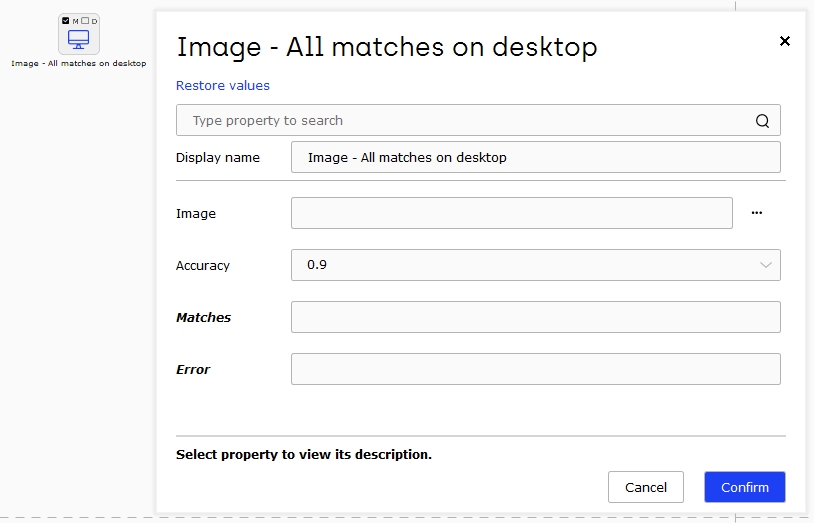

All matches on desktop

Optie	Waarde	Type veld
Image	Image from the resources. Click on the more options to open the resource selection window	jpg, png, bmp
Process	Name of processes in which window the image will be searched for	tekst
Accuracy	Minimum required accuracy for all results of image recognition - best result is always selected, but its accuracy has to be at least of this value.	dropdown
Matches	All matches of the template on desktop in JSON format	tekst
Error	Error message if matching will fail	tekst
