Metaflow - Desktop windows Automation
Desktop windows Automation
Metaflow referentie: Code
Info
Elke windows automation workflow start met een start en eindigt met een stop object

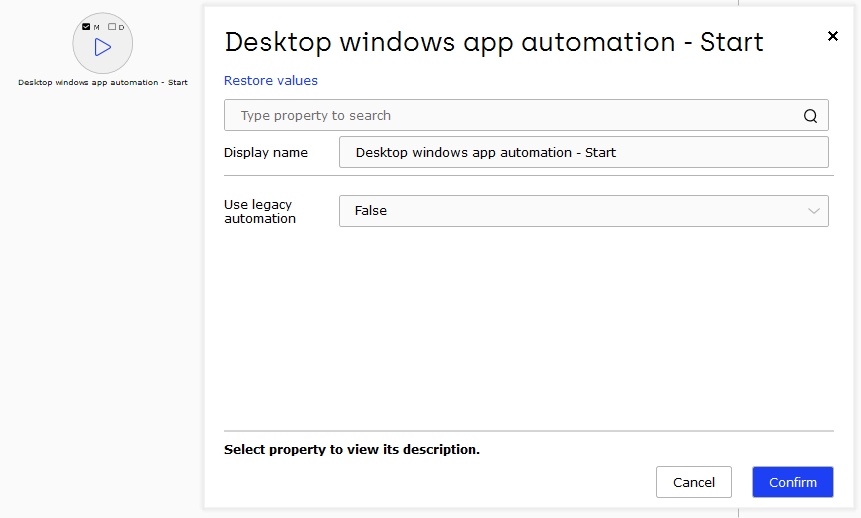

Start
| Optie | Waarde | Type veld |
|---|---|---|
| Use legacy Automation | true / false | boolean |

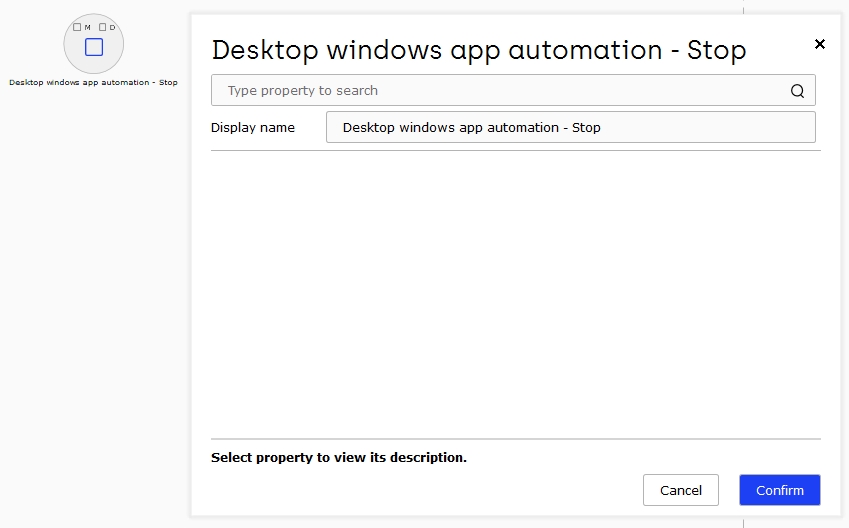

Stop

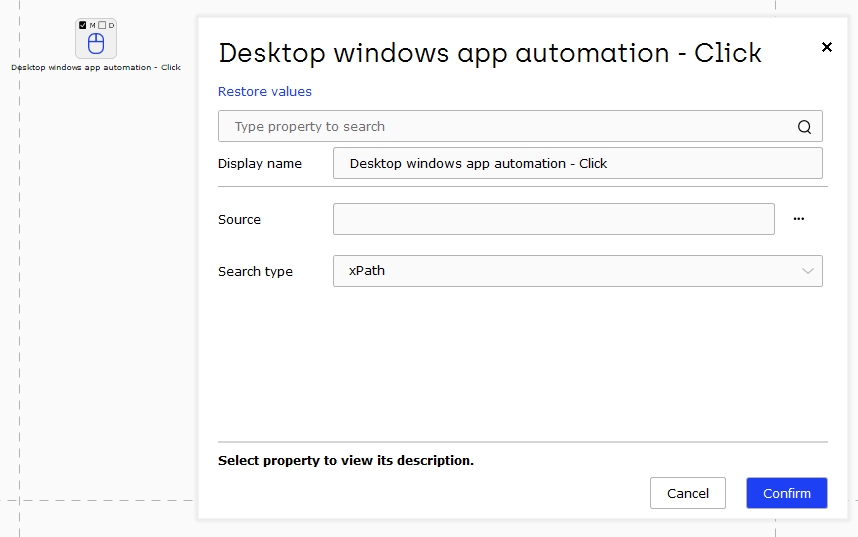

Click
| Optie | Waarde | Type veld |
|---|---|---|
| Source | Path to an object. Click on the more options icon to open the object cloning window | xPath |
| Search type | xPath / className / ControlType / Name / AutomationId | dropdown |
Current Windows Production Contains
| Optie | Waarde | Type veld |
|---|---|---|
| Text | String to be checked whether the current Windows product name contains it | tekst |

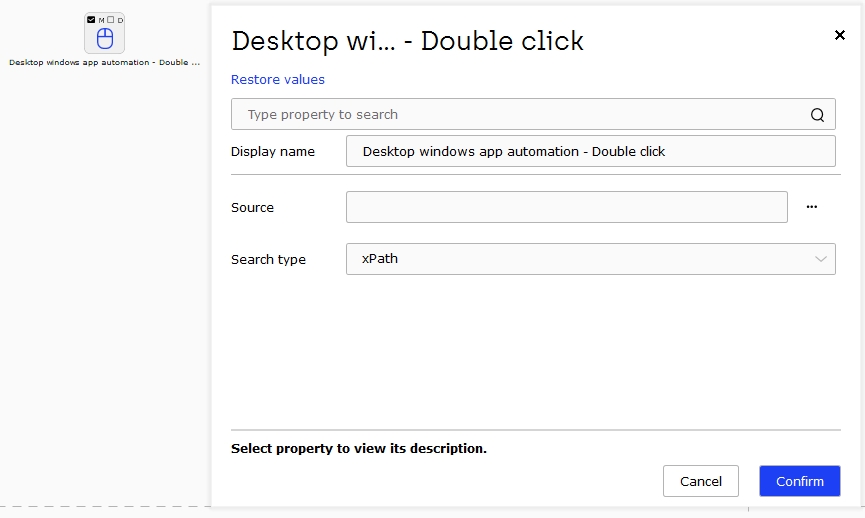

Double Click
| Optie | Waarde | Type veld |
|---|---|---|
| source | Path to an object. Click on the more options icon to open the object cloning window | xPath |
| Search type | xPath / className / ControlType / Name / AutomationId | dropdown |

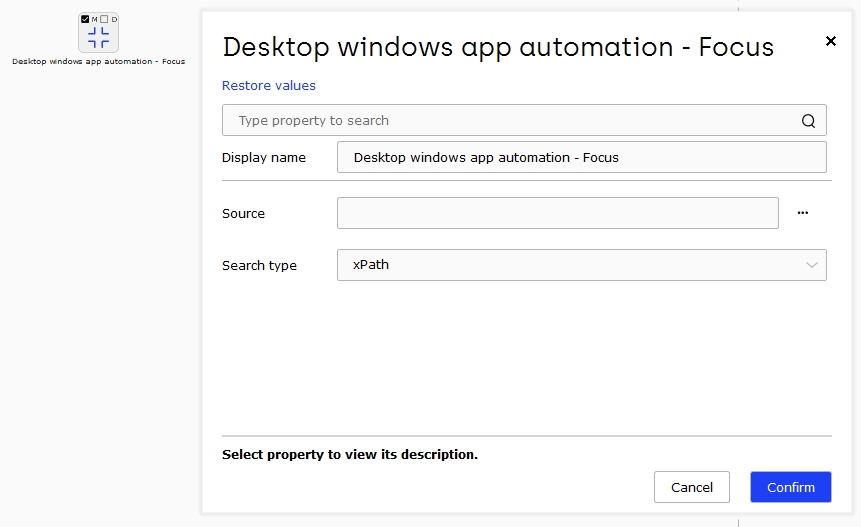

Focus
| Optie | Waarde | Type veld |
|---|---|---|
| Source | Path to an object. Click on the more options icon to open the object cloning window | xPath |
| Search type | xPath / className / ControlType / Name / AutomationId | dropdown |

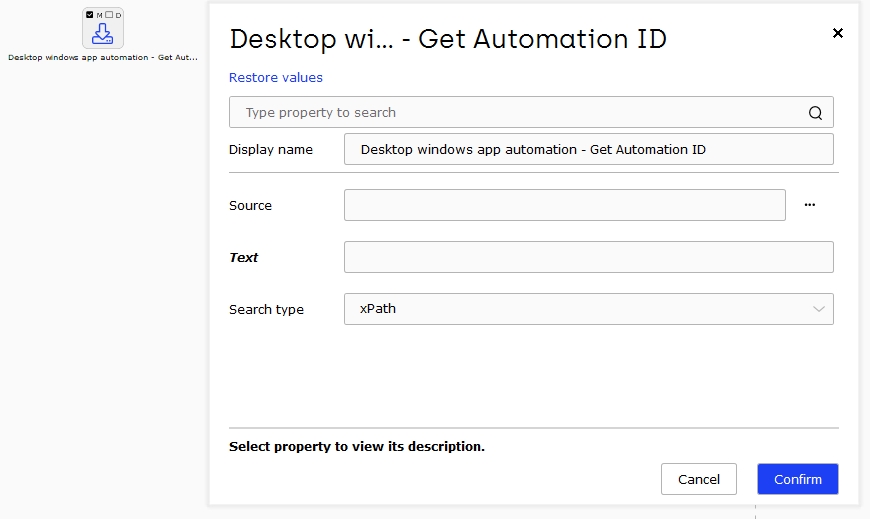

Get Automation Id
| Optie | Waarde | Type veld |
|---|---|---|
| Source | Path to an object. Click on the more options icon to open the object cloning window | xPath |
| Text | Automation Id of the object. If method failed, then it's empty string | tekst |
| Search type | xPath / className / ControlType / Name / AutomationId | dropdown |

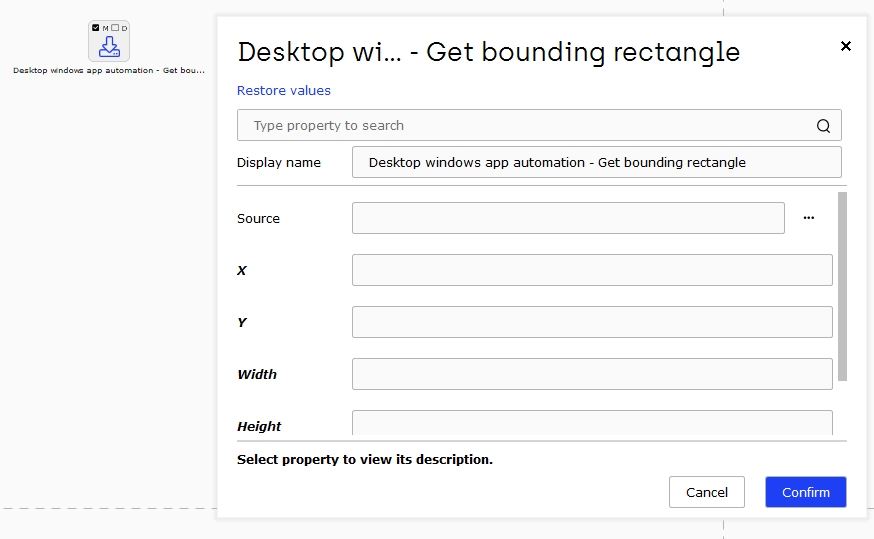

Get bounding rectangle
| Optie | Waarde | Type veld |
|---|---|---|
| Source | Path to an object. Click on the more options icon to open the object cloning window | xPath |
| x | Coordinate on the X-axis of the top right corner of the object | tekst |
| y | Coordinate on the Y-axis of the top right corner of the object | tekst |
| Width | width of the object | tekst |
| Height | Height of the object | tekst |
| Search type | xPath / className / ControlType / Name / AutomationId | dropdown |
Get class Name
| Optie | Waarde | Type veld |
|---|---|---|
| Source | Path to an object. Click on the more options icon to open the object cloning window | xPath |
| Text | Class name of the object. If method failed, then it's empty string | tekst |
| Search type | xPath / className / ControlType / Name / AutomationId | dropdown |

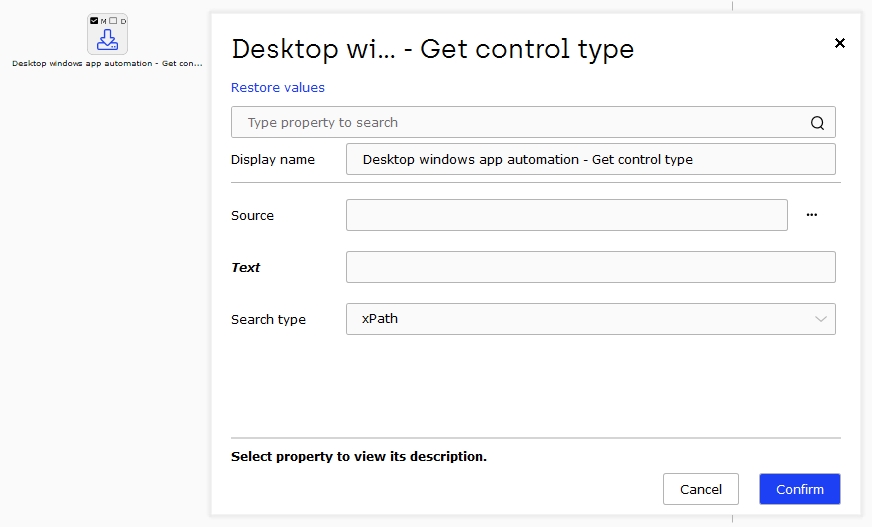

Get Control Type
| Optie | Waarde | Type veld |
|---|---|---|
| Source | Path to an object. Click on the more options icon to open the object cloning window | xPath |
| Text | Name of the object. If method failed, then it's empty string | tekst |
| Search type | xPath / className / ControlType / Name / AutomationId | dropdown |

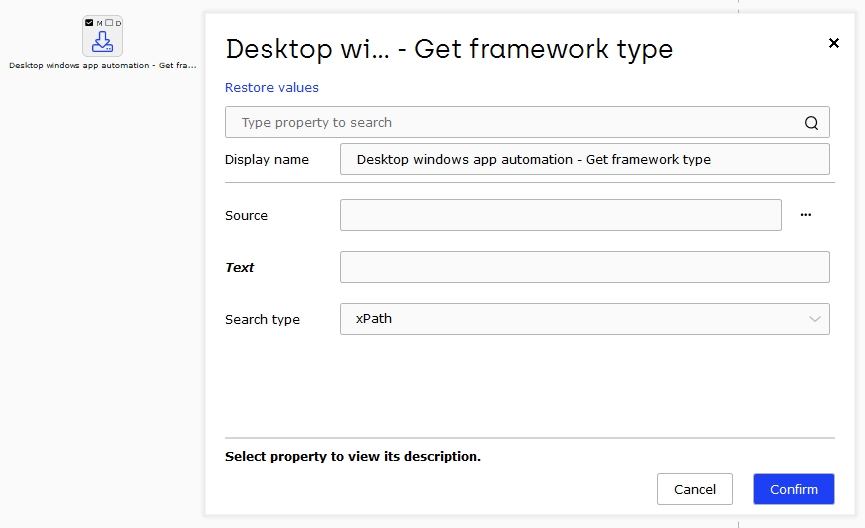

Get Framework Type
| Optie | Waarde | Type veld |
|---|---|---|
| Source | Path to an object. Click on the more options icon to open the object cloning window | xPath |
| Text | Framework of the object. If method failed, then it's empty string | tekst |
| Search type | xPath / className / ControlType / Name / AutomationId | dropdown |

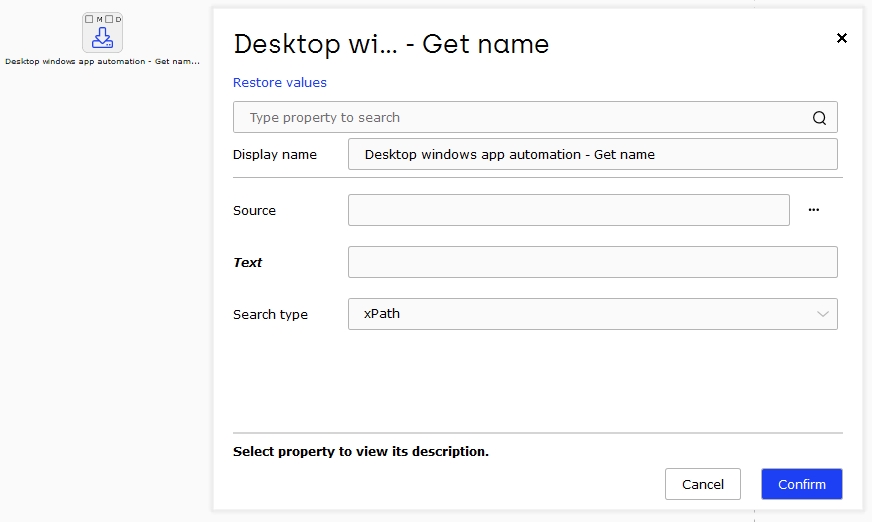

Get Name
| Optie | Waarde | Type veld |
|---|---|---|
| Source | Path to an object. Click on the more options icon to open the object cloning window | xPath |
| Text | Name of the object. If method failed, then it's empty string | tekst |
| Search type | xPath / className / ControlType / Name / AutomationId | dropdown |

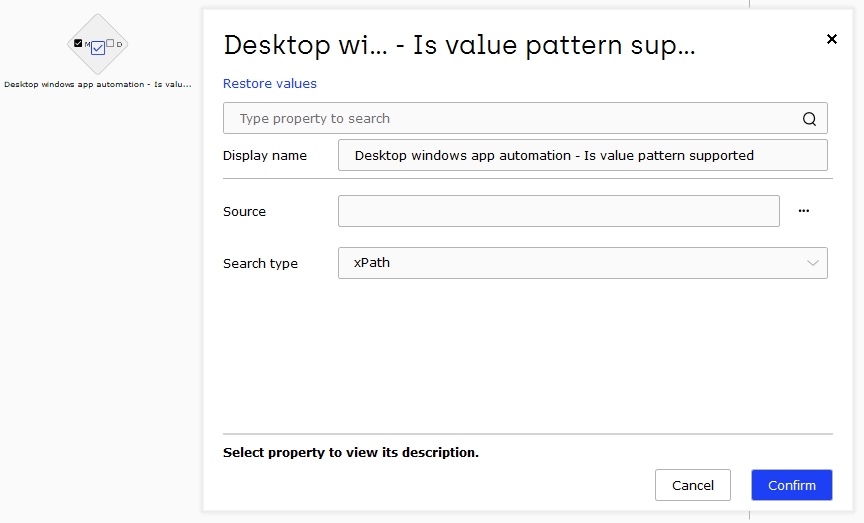

Is value patttern supported
| Optie | Waarde | Type veld |
|---|---|---|
| Source | Path to an object. Click on the more options icon to open the object cloning window | xPath |
| Search type | xPath / className / ControlType / Name / AutomationId | dropdown |

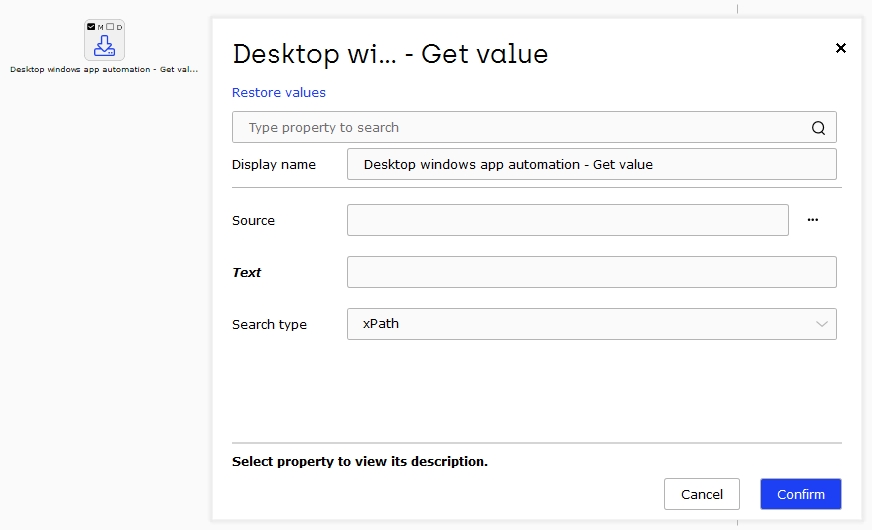

Get value
| Optie | Waarde | Type veld |
|---|---|---|
| Source | Path to an object. Click on the more options icon to open the object cloning window | xPath |
| Text | Value of the object. If method failed, then it's empty string | tekst |
| Search type | xPath / className / ControlType / Name / AutomationId | dropdown |

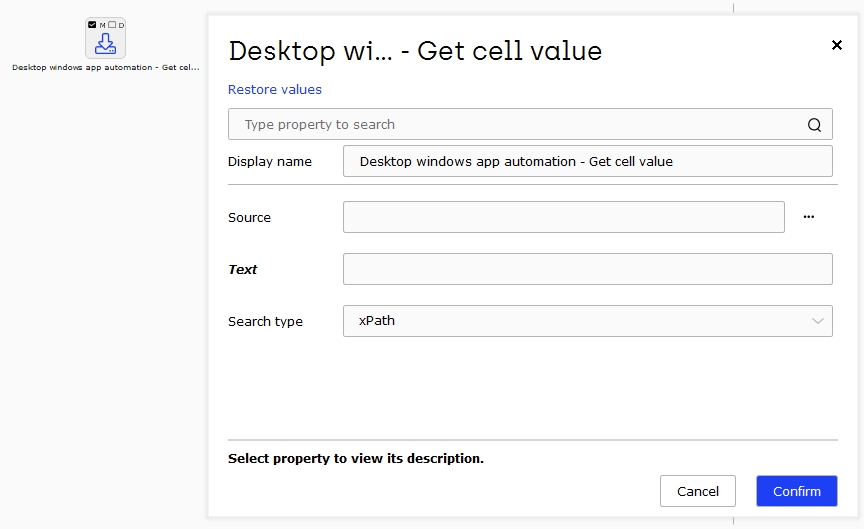

Get cell value
| Optie | Waarde | Type veld |
|---|---|---|
| Source | Path to an object. Click on the more options icon to open the object cloning window | xPath |
| Text | Value of the object. If method failed, then it's empty string | tekst |
| Search type | xPath / className / ControlType / Name / AutomationId | dropdown |

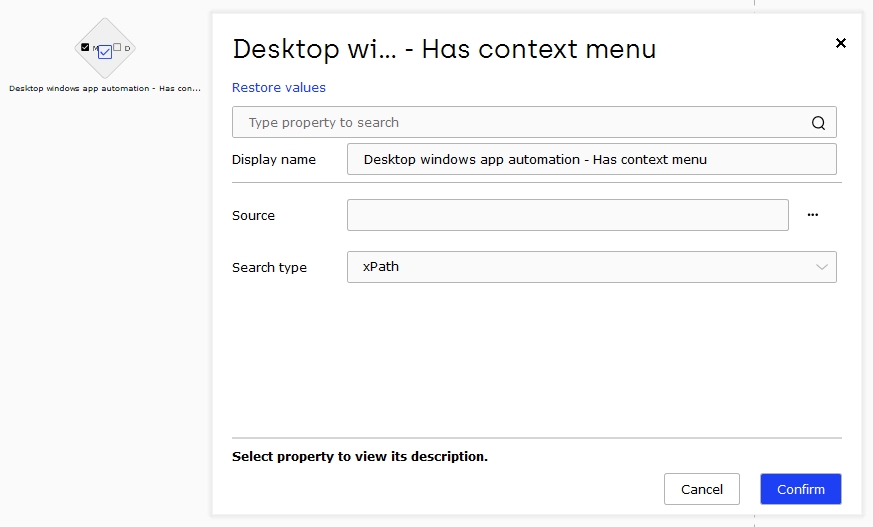

Has context menu
| Optie | Waarde | Type veld |
|---|---|---|
| Source | Path to an object. Click on the more options icon to open the object cloning window | xPath |
| Search type | xPath / className / ControlType / Name / AutomationId | dropdown |

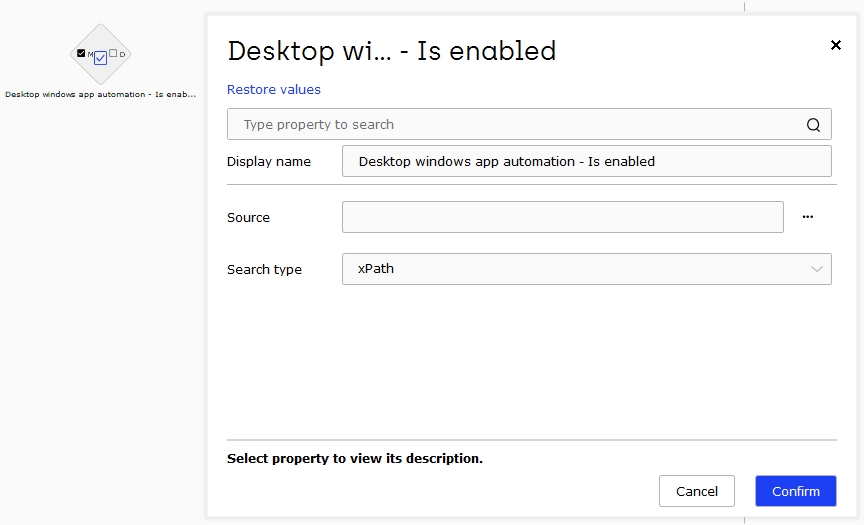

Is enabled
| Optie | Waarde | Type veld |
|---|---|---|
| Source | Path to an object. Click on the more options icon to open the object cloning window | xPath |
| Search type | xPath / className / ControlType / Name / AutomationId | dropdown |

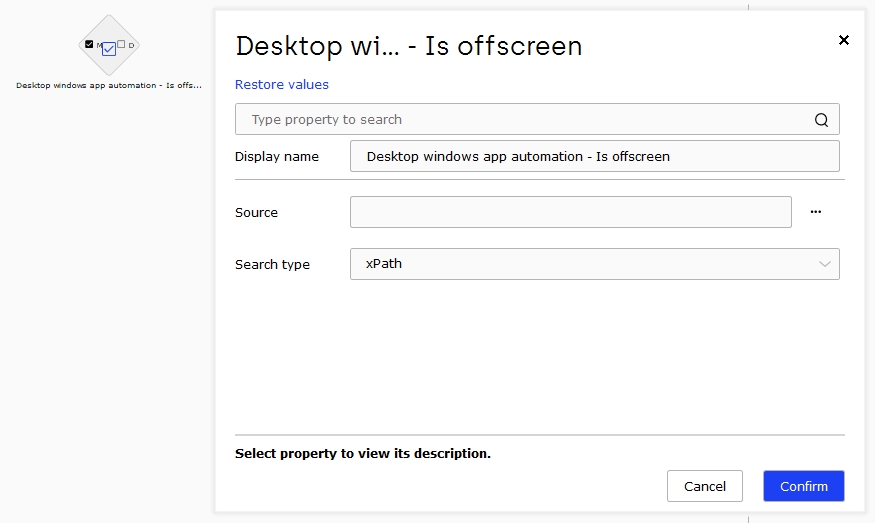

Is offscreen
| Optie | Waarde | Type veld |
|---|---|---|
| Source | Path to an object. Click on the more options icon to open the object cloning window | xPath |
| Search type | xPath / className / ControlType / Name / AutomationId | dropdown |

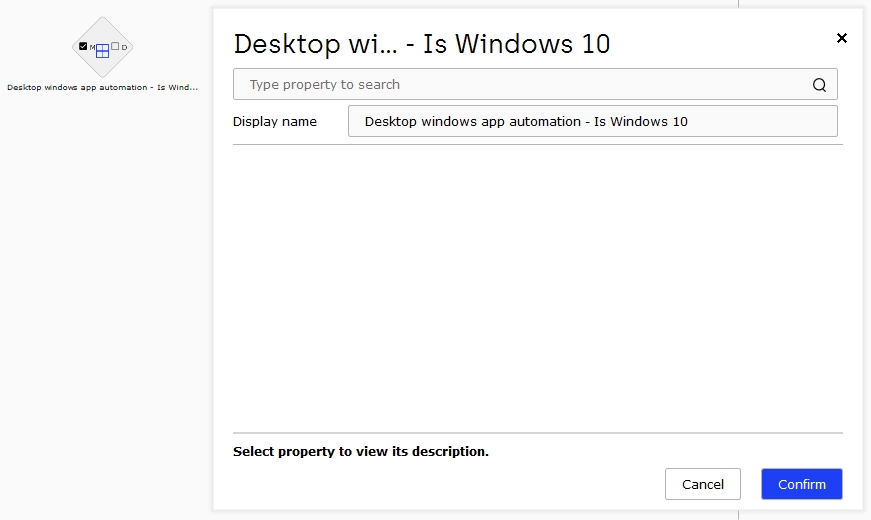

Is windows 10

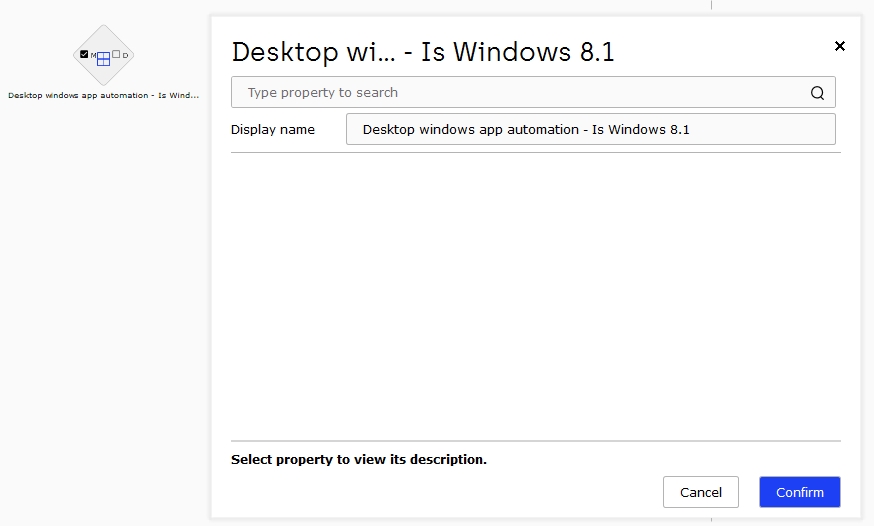

Is windows 8.1

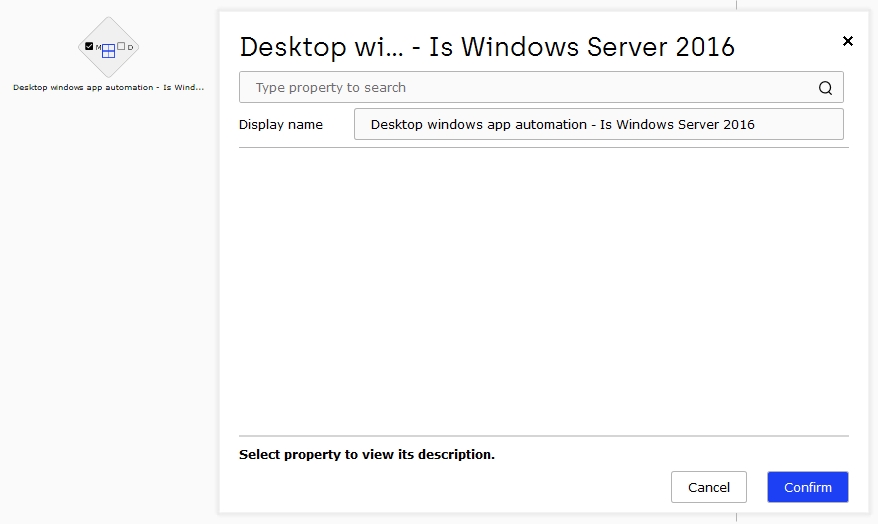

Is windows server 2016

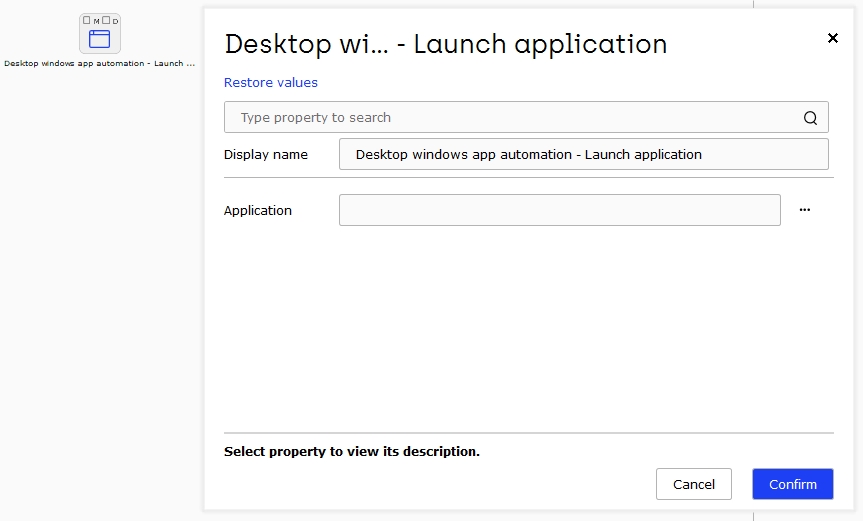

Launch Application
| Optie | Waarde | Type veld |
|---|---|---|
| Application | Path to an object. Click on the more options icon to open the object cloning window | xPath |

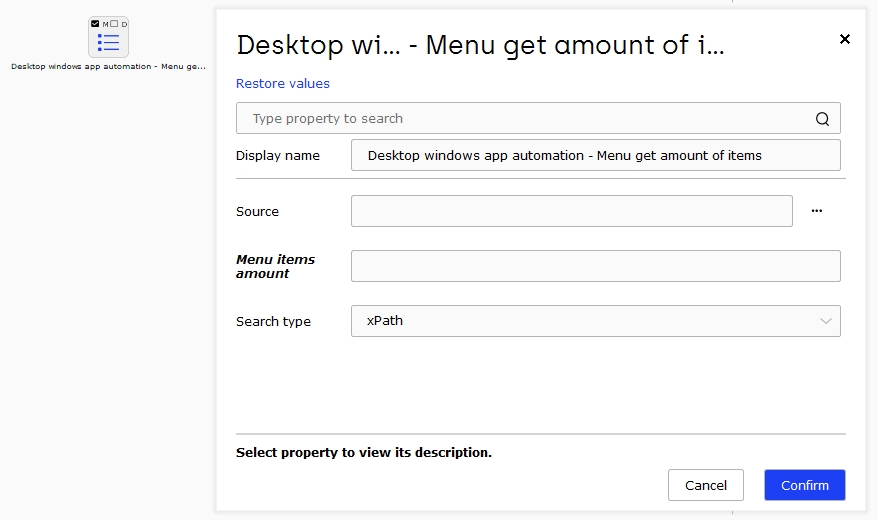

Menu get amount of items
| Optie | Waarde | Type veld |
|---|---|---|
| Source | Path to an object. Click on the more options icon to open the object cloning window | xPath |
| Menu times amount | Amount of items in the menu of the object. If method failed, then it's empty string | tekst |
| Search type | xPath / className / ControlType / Name / AutomationId | dropdown |

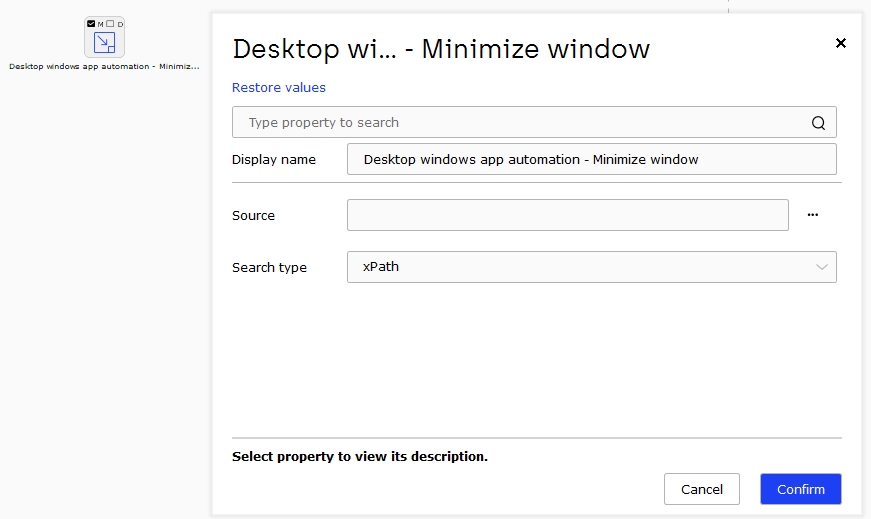

Minimize window
| Optie | Waarde | Type veld |
|---|---|---|
| Source | Path to an object. Click on the more options icon to open the object cloning window | xPath |
| Search type | xPath / className / ControlType / Name / AutomationId | dropdown |
Maximize window
| Optie | Waarde | Type veld |
|---|---|---|
| Source | Path to an object. Click on the more options icon to open the object cloning window | xPath |
| Search type | xPath / className / ControlType / Name / AutomationId | dropdown |

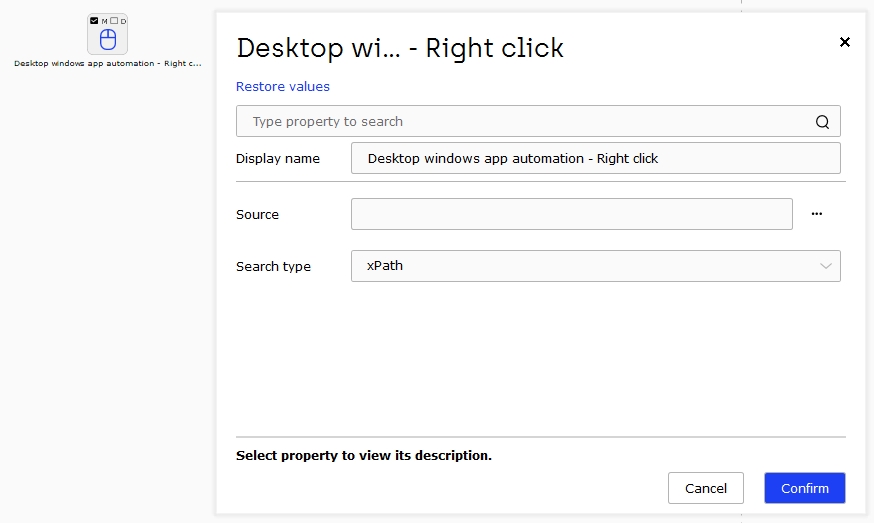

Right click
| Optie | Waarde | Type veld |
|---|---|---|
| Source | Path to an object. Click on the more options icon to open the object cloning window | xPath |
| Search type | xPath / className / ControlType / Name / AutomationId | dropdown |

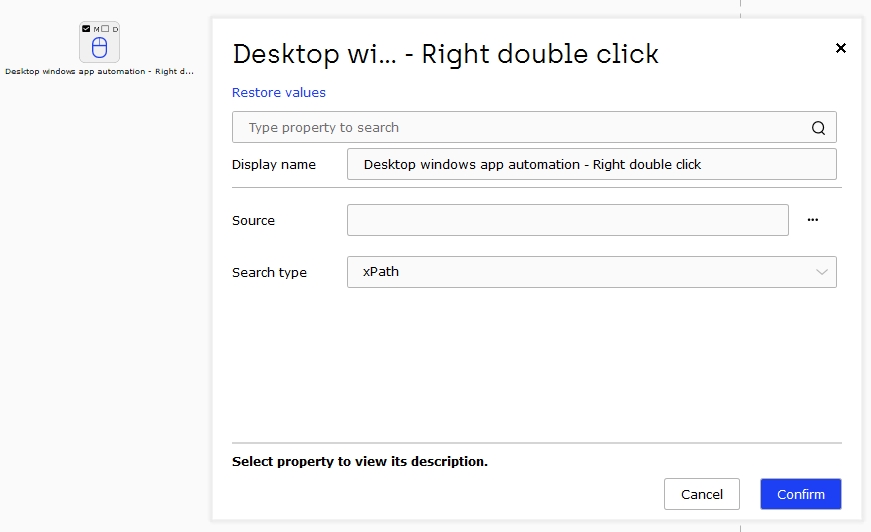

Right double click
| Optie | Waarde | Type veld |
|---|---|---|
| Source | Path to an object. Click on the more options icon to open the object cloning window | xPath |
| Search type | xPath / className / ControlType / Name / AutomationId | dropdown |
Set window to background
| Optie | Waarde | Type veld |
|---|---|---|
| Source | Path to an object. Click on the more options icon to open the object cloning window | xPath |
| Search type | xPath / className / ControlType / Name / AutomationId | dropdown |

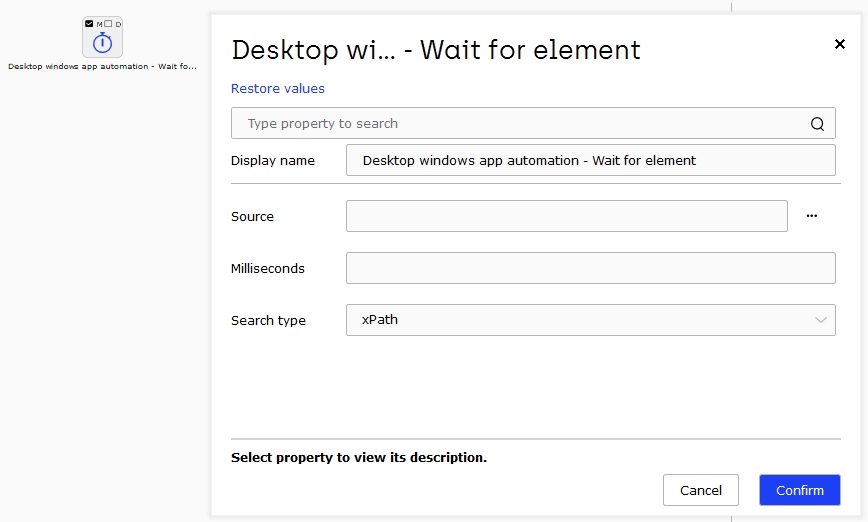

Wait for element
| Optie | Waarde | Type veld |
|---|---|---|
| Source | Path to an object. Click on the more options icon to open the object cloning window | xPath |
| Milliseconds | tekst / variabele | tekst |
| Search type | xPath / className / ControlType / Name / AutomationId | dropdown |

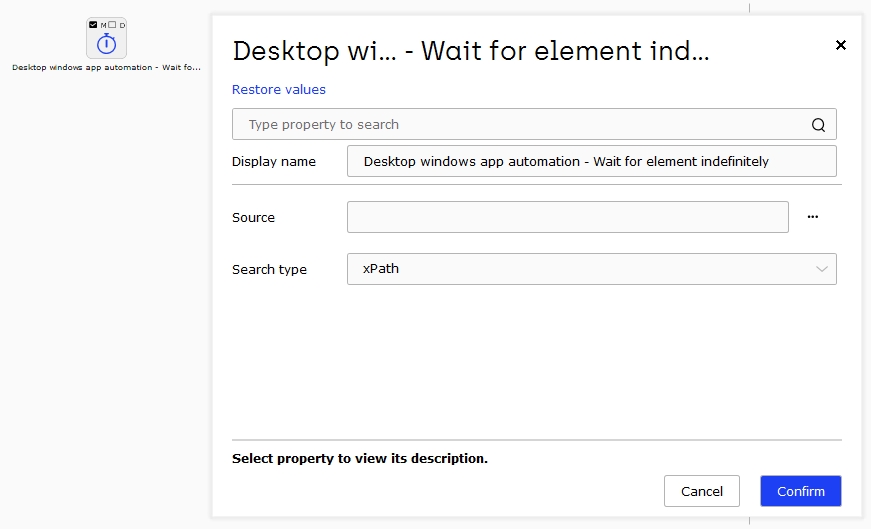

Wait for element indefinitely
| Optie | Waarde | Type veld |
|---|---|---|
| Source | Path to an object. Click on the more options icon to open the object cloning window | xPath |
| Milliseconds | tekst / variabele | tekst |
| Search type | xPath / className / ControlType / Name / AutomationId | dropdown |
